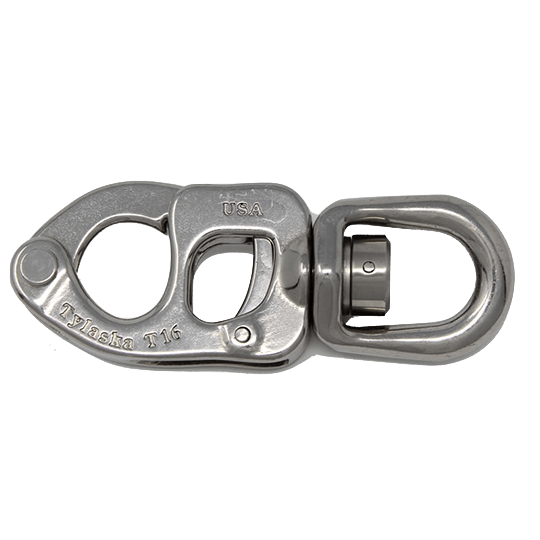

Tylaska T16 Large Bail Snap Shackle
The T16 is a larger shackle designed for mid to large sized boats. The T-16 has a breaking strength of 16,000 pounds and weighs only 9.1 ounces in the standard bail configuration. Ideal for 40 to 50 foot sailboats. The T16 is intended for static load applications only and is NOT approved for lifting applications.
T16 Specifications
| Product No. | Bail Type | A (in. [mm]) | B (in. [mm]) | C (in. [mm]) | D (in. [mm]) | E (in. [mm]) | F (in. [mm]) | Weight (oz [g]) | Working Load Limit (lb [kg]) | Breaking Strength (lb [kg]) |
|---|---|---|---|---|---|---|---|---|---|---|
| TY1016-L | Large | .90 [22.9] | 1.31 [33.3] | 5.41 [137.5] | .53 [13.5] | .50 [12.7] | .73 [18.5] | 12.8 [363] | 8,000 [3,630] | 16,000 [7,260] |
| 16,000 [7,260] |
Tylaska T16 Large Bail Snap Shackle
Sale price$274.29
Regular price$325.72
Choose options
Tylaska T16 Large Bail Snap Shackle
Sale price$274.29
Regular price$325.72
