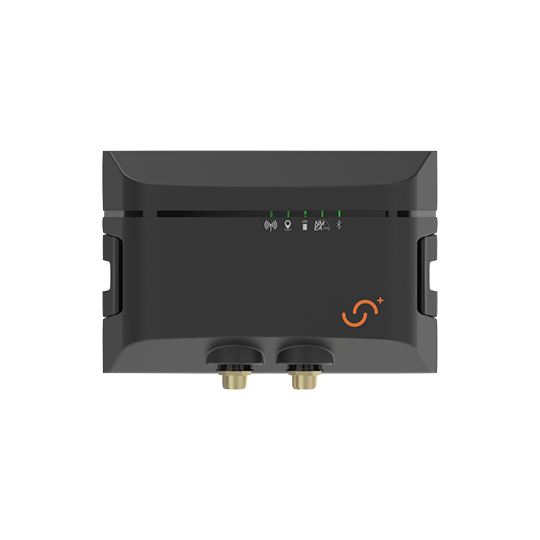

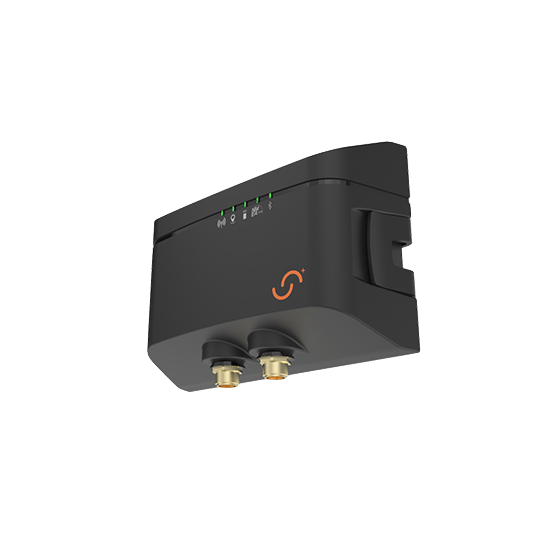

Siren Marine 3 Plus Main Device
| Physical Dimensions | 6 in x 4.4 in x 2.1 in 152.4 mm x 111.76 mm x 53.34 mm |
| Weight | 1lb .5kg |
| Operating Voltage | 9-30 VDC |
| Internal Battery Type | 3000mAh Lithium Polymer Battery |
| Internal Battery Backup Power | Up to 48 Hours Backup Power |
| Firmware Upgradeability | Over the Air (OTA) for Siren 3 Plus |
| Cellular | Internal Antenna, 4G/5G CAT-M1, with fall back to NB-IoT and EGPRS |
| Wireless | Internal Antenna |
| NMEA 2000 | CAN Bus 1, M12 (5 Pin) |
| Mounting | Snap-in bracket with (4) screws provided for mounting |
| Positioning | Internal Antenna, GNSS, GPS/GLONASS with SBAS |
| Connectivity | Interface cable with mating connector of 1m length provided for wired inputs and outputs with 12 AWG conductors. |
| Environmental/Temperature (Operating) | 32°F to 113°F 0°C to 45°C |
| Environmental/Temperature (Storage) | -4°F to 140°F -20°C to 60°C |
| Humidity | 0 to 90% RH |
| Water & Dust Tolerance | IP67 |
| Certifications | FCC Part 15, Subpart B, Class B EN60945 CE PTCRB NMEA 2000 |
| Wired Sensor Inputs | Battery 1 Battery 2 High Water 1 Security 1 Ignition Battery Switch Shore Power Remote Arm/Disarm |
| Wired Sensor Outputs | Blue Sea Battery Switch (#7713) Relay Output 1 Relay Output 2 |

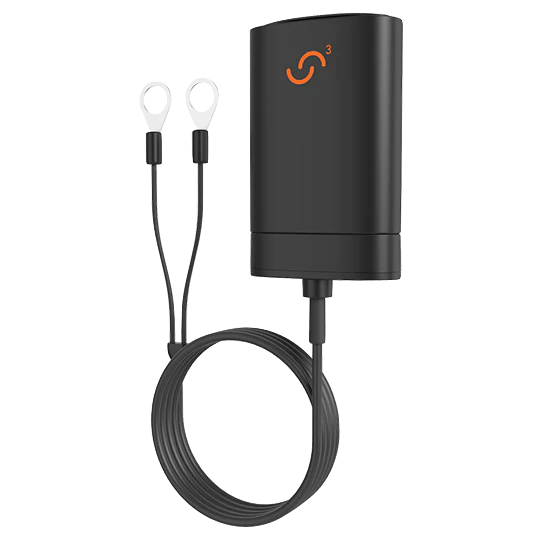

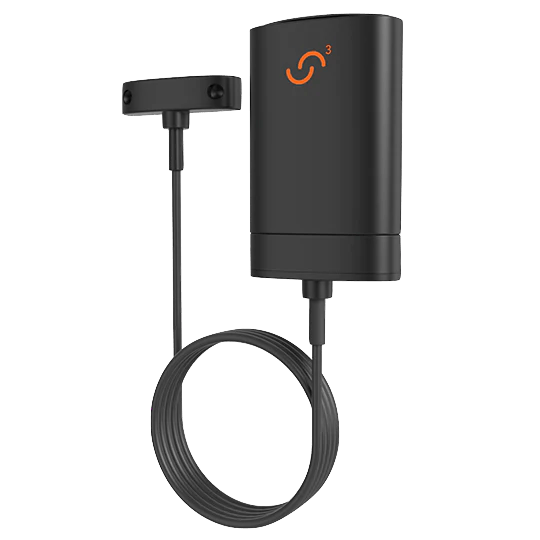

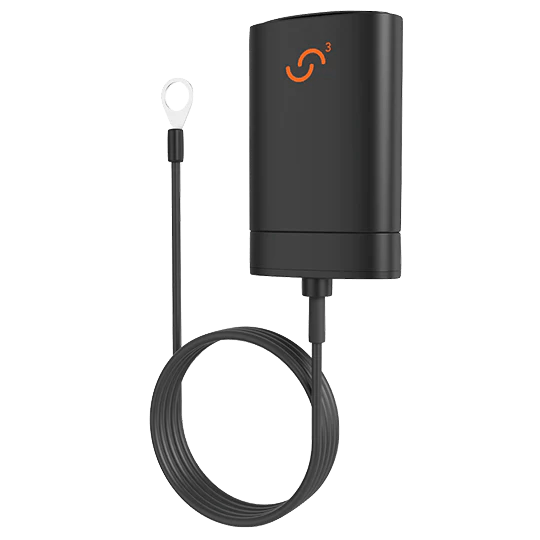

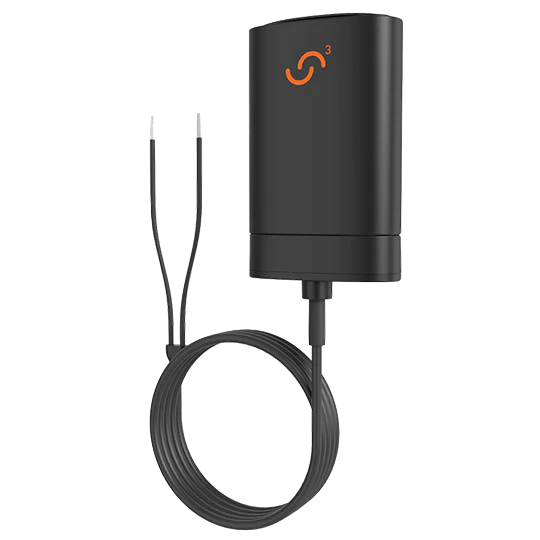

| Wireless Sensors | Magnetic Reed Switch (Intrusion) Bilge Pump Activity Temperature High Water Battery Voltage |
Battery Monitoring
Monitor your boat’s battery & receive alerts if voltage is low
GPS Position/Geofence
Track boat’s location & receive alerts on boat movement
NMEA 2000
Best-in-class NMEA 2000 marine electronics backbone connectivity
Digital Switching
Remotely control multifunction displays, lights, refrigerator & more
Global LTE (4G/5G)
The latest cellular technology connects you to your boat anywhere, anytime
Engine Metrics
Monitor performance & support metrics for any NMEA propulsion system
Connected Fluid Tanks
Monitor tank levels (i.e. fuel, water, etc.) and check level history
Security/Entry
Add snap, motion & entry sensors for the ultimate boat security system
Bilge
Monitor bilge activity, including bilge run time & daily bilge cycles
High Water
Detect water and monitor water level in bilge
Shore Power
Monitor shore power connection & receive power outage alerts
Temperature
Monitor temperature of cabin, engine room, fridge and/or bait locker
Satellite Compatible
SirenSat provides smart boat location & tracking when outside of cell range
Wireless Sensors 3.0
Siren 3 Pro delivers improved wireless connectivity
