Name: Schaefer 506-11 51mm Single 5 Series Aluminum Ball Bearing Cheek Block
Brand: Pacific Sailboat Supply
SKU: 47063
Price: 120.52 USD
Availability: InStock

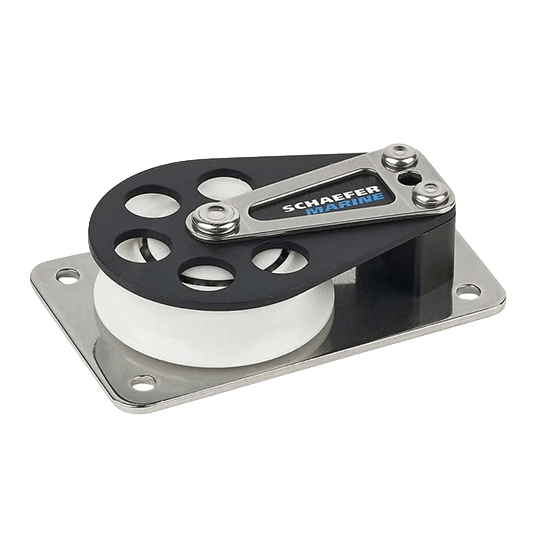

Schaefer 506-11 51mm Single 5 Series Aluminum Ball Bearing Cheek Block

5 Series Cheek Block with Anodized Aluminum cheek and Delrin(tm) ball bearing sheave. Delrin(tm) ball bearing sheave provides low-friction and high safe working load. Stainless steel base distributes loads to a large surface area.

Sheave Dia.	2" (51 mm)
Max Line	7/16" (11 mm)
L (Length)	3-5/8" (92 mm)
W (Width)	2-7/32" (57 mm)
H (Height)	7/8" (22 mm)
Fasteners	(4) #10 RH (5 mm)
Center-to-Center (C/C)	3" (76 mm)
SWL (Safe Working Load)	1500 lbs. (680 kg)
Weight (Aluminum)	5.9 oz. (167 g)
Max Line	7/16" (11 mm)
