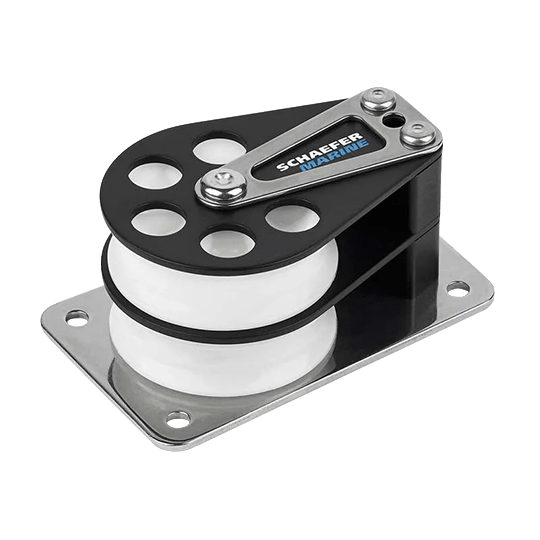

Schaefer 504-28 51mm Double 5 Series Aluminum Cheek Block

Delrin Sheave Dia.

2" (51 mm)

Max Line

7/16" (11 mm)

L (Length)

3-5/8" (92 mm)

W (Width)

2-7/32" (57 mm)

H (Height)

7/8" (22 mm)

Fasteners

(4) #10 RH (5 mm)

Center-to-Center (C/C)

3" (76 mm)

C/C (wide end)

1-5/8"

C/C (narrow end)

1-3/8"

SWL (Safe Working Load)

1750 lbs. (795 kg)

Weight

6.5 oz. (184 g)

Top Sheave SWL

350 lbs. (159 kg)
