Name: Schaefer 03-86 3 Series Single Stainless Stand-Up Genoa Lead Block For 1" T-Track
Brand: Pacific Sailboat Supply
SKU: 69567
Price: 215.14 USD
Availability: InStock

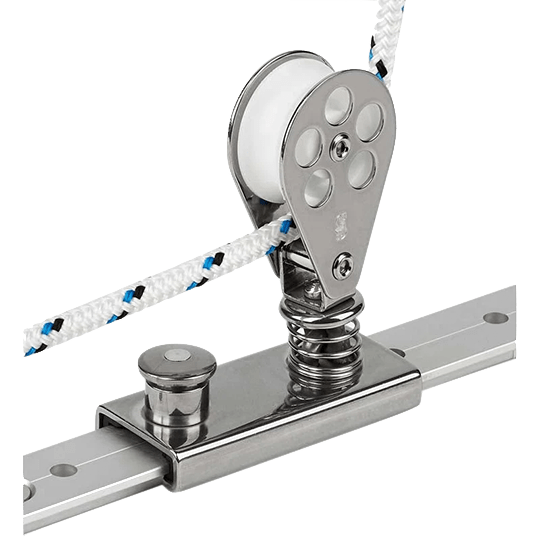

Schaefer 03-86 3 Series Single Stainless Genoa Lead Block For 1" T-Track

03-86 Spring loaded block for 1" T-Track. Delrin(tm) sheave ensures smooth operation and high safe working load. Stainless Steel cheeks and Stainless Steel slider provide a strong and reliable block. Pin stop allows for easy adjustment.

Track Size	1" x 1/8" (25 mm x 3 mm)
Boat Size Up To	LOA 27' (8 m), Displ. 5000 lbs. (2270 kg), Sail Area 315 sq. ft. (29 m²)
Sheave Diameter	1-7/16" (40 mm)
Max Line Diameter	7/16" (11 mm)
Length (L)	3" (76 mm)
Width (W)	1-1/4" (31 mm)
Height (H)	3-17/32" (90 mm)
Bearing Height	2-5/32" (55 mm)
Safe Working Load (SWL)	1000 lbs. (450 kg)
Weight	4.5 oz. (128 g)
