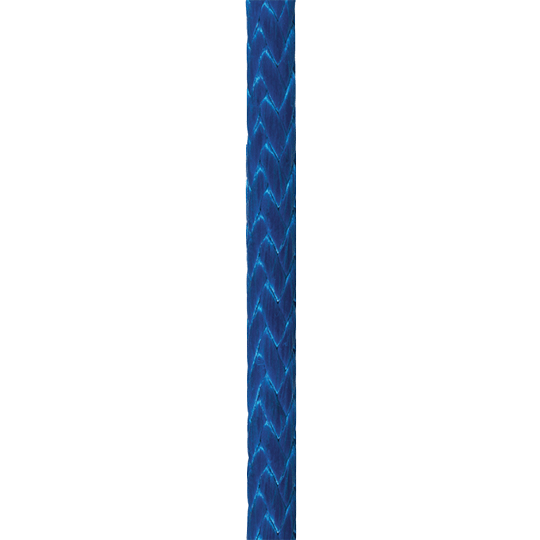

Samson AmSteel - Blue Dyneema Double Braided Racing Line

AmSteel^®-Blue is a torque-free, 12-strand single braid that yields the maximum in strength-to-weight ratio and, size-for-size, is the same strength as steel-yet it floats. AmSteel-Blue is an excellent wire rope replacement with extremely low stretch, and superior flex fatigue and wear resistance.

AT PERCENT OF BREAK STRENGTH
10%	20%	30%
ELASTIC ELONGATION
0.46%	0.70%	0.96%



DIAM.  (INCH)	1/4	5/16	3/8	7/16
CIRC.  (INCH)	3/4	1	1 1/8	1 1/4
WEIGHT PER 100 FT.  (LBS)	1.6	2.7	3.4	4.5
AVG. STRENGTH  (LBS)	8,600	13,700	19,600	23,900
MIN. STRENGTH  (LBS)	7,700	12,300	17,600	21,500

•   Abrasion resistant

•   Easy to inspect

•   Easy to splice

•   Excellent wear characteristics

•   Extremely low stretch

•   Flexible

•   Floats

•   High strength

•   Highly flex-fatigue resistant

•   Lightweight

•   Maximum strength-to-weight ratio

•   Samthane coated

•   Similar elastic elongation to wire rope

•   Torque-free construction

•   Wire rope replacement
