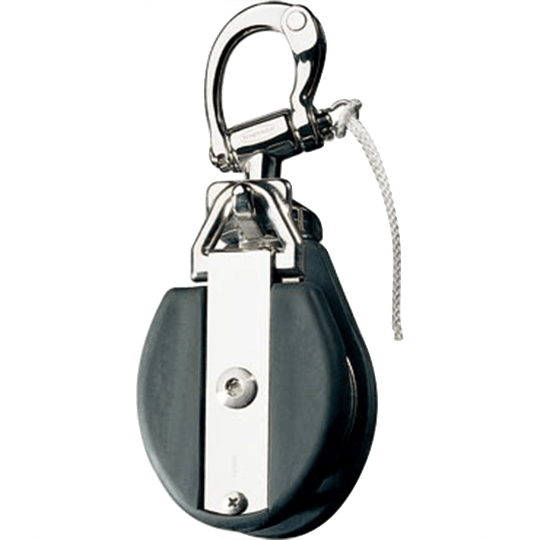

Ronstan RF6751 80mm Snatch Block With Trunnion Shackle

Sale price$545.98 Regular price$642.34

FEATURES

  • High strength
  • Secure latch mechanism
  • Soft resilient cheeks

PRODUCT INFORMATION

Grade 316 stainless steel sheaves running on needle roller bearings deliver low friction performance and a long service life. An extra wide stainless steel frame extends to the full diameter of the sheave to prevent lines from becoming jammed between the sheave and cheeks. Sheaves are removable for easy maintenance and can be used with rope or wire. Trunnion snap shackles are standard for maximum articulation. An attachment point is provided for a shock cord retainer to hang the block from the lifelines.Trunnion snap shackle provides the same swivel action and offers additional articulation from side to side.
Spare Parts; RF6461 Replacement Plunger Pin Kit


APPLICATIONS

  • Removable spinnaker sheet deflector blocks for boats up to 13m (43ft)
  • Temporary sheeting point while changing sheets for boats up to 13m (43ft)
  • Temporary reefing block for boats up to 13m (43ft)
  • Spare or replacement block for general use on larger boats depending on line angle and load
  • Temporary outboard sheet lead for headsail trimming

MATERIALS

  • Grade 316 Stainless Steel frame, load strap, sheave and needle roller bearings
  • Soft, thermoplastic rubber cheeks
  • Investment cast Grade 15-5PH Stainless Steel snap shackle
Sheave Ø 80 mm
Max. Rope Ø 19 mm
Max. Cable Ø - mm
Pin Ø - mm
M.W.L. 2500 kg
B. L. 5000 kg
Weight 1480 g
