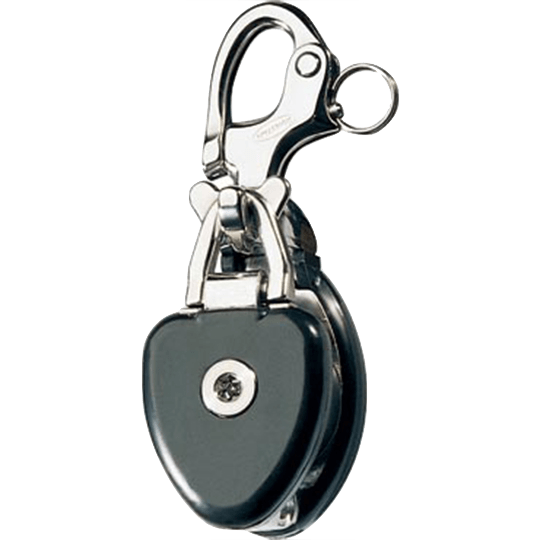

Ronstan RF6730 45mm Snatch Block

FEATURES

• Easily operated latch mechanism
• Lightweight
• Soft resilient cheeks

PRODUCT INFORMATION

Snatch blocks are a tough and reliable solution for temporary leads and line deflection. Simple and quick to deploy, they can be easily opened when the load is released. The standard snap shackle head allows the block to swivel through 360°. Soft resilient cheeks reduce clatter and protect gelcoat and painted surfaces. Attachment point provided for shock cord hanger.Spare Parts; RF6262 Replacement Plunger Pin Kit

---

APPLICATIONS

• Removable spinnaker sheet deflector blocks for boats up to 10m (33ft)
• Temporary sheeting point while changing sheets for boats up to 10m (33ft)
• Temporary reefing block for boats up to 10m (33ft)
• Spare or replacement block for general use on larger boats depending on line angle and load
• Temporary outboard sheet lead for headsail trimming

---

MATERIALS

• Grade 316 stainless steel frame and load strap
• Hard coat anodised alloy sheave
• Soft PVC cheeks
• Investment cast Grade 15-5PH stainless steel snap shackle

Sheave Ø	45 mm
Max. Rope Ø	16 mm
Max. Cable Ø	- mm
Pin Ø	- mm
M.W.L.	1350 kg
B. L.	2700 kg
Weight	550 g
