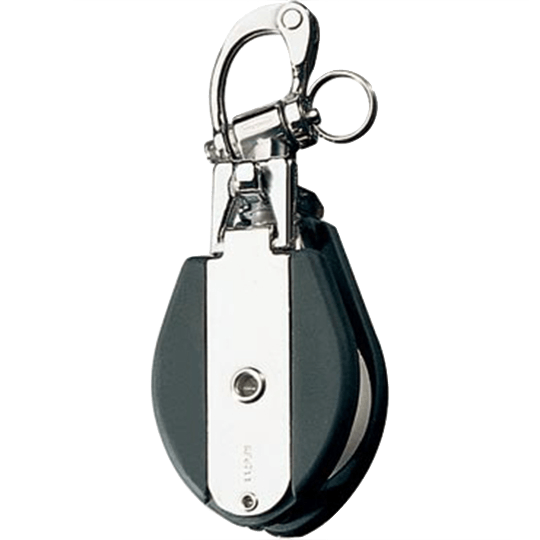

Ronstan RF6711 51mm Snatch Block With Trunnion Shackle

Sale price$181.54 Regular price$213.57

FEATURES

  • Easily operated latch mechanism
  • Lightweight
  • Soft resilient cheeks

PRODUCT INFORMATION

Snatch blocks are a tough and reliable solution for temporary leads and line deflection. Simple and quick to deploy, they can be easily opened when the load is released. The standard snap shackle head allows the block to swivel through 360°. Soft resilient cheeks reduce clatter and protect gelcoat and painted surfaces. Attachment point provided for shock cord hanger.Trunnion snap shackle provides the same swivel action and offers additional articulation from side to side.
Spare Parts; RF6161 Replacement Plunger Pin Kit


APPLICATIONS

  • Temporary sheeting point while changing sheets for boats up to 10m (33ft)
  • Temporary reefing block for boats up to 10m (33ft)
  • Spare or replacement block for general use on larger boats depending on line angle and load

MATERIALS

  • U.V. stabilised Acetal sheaves
  • Grade 316 stainless steel frame and load strap
  • Soft thermoplastic rubber cheeks
  • Investment cast Grade 15-5PH stainless steel snap shackle



Sheave Ø 51 mm
Max. Rope Ø 12 mm
Max. Cable Ø - mm
Pin Ø - mm
M.W.L. 425 kg
B. L. 850 kg
Weight 260 g
