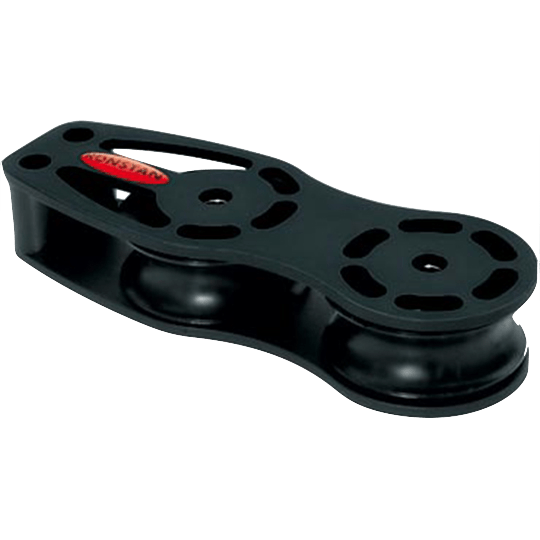

Ronstan RF41821 40mm Double 2-Sheave Deck Organizer

Sale price$54.06 Regular price$63.66

FEATURES

  • Lightweight design with cheek cut outs for easy bearing maintenance
  • Through hub mounting for maximum strength
  • All-purpose bearing system provides maximum static load capacity
  • Mount with 4 x 6mm (1/4”) fasteners, not supplied
  • Length 116mm (4 9/16")
  • Hole centres at 48.5mm (1 29/32")
Sheave Ø 1 5/8 in.
Max. Rope Ø 1/2 in.
Max. Cable Ø - in
Fastener Ø 1/4 in.
M.W.L. 1100 lb.
B. L. 2200 lb.
Weight 3.6 oz.



PRODUCT INFORMATION

Deck organisers are an effective means of deflecting halyards and other control lines to winches, stoppers and cleats. Sheaves are made from impact resistant Acetal. The deck organisers have alloy cheeks. All sizes can be stacked to create double versions - MWL of the top sheaves must not exceed 50% of the total block load rating.


APPLICATIONS

  • Line deflection on larger yachts (depending on load and angle of deflection)
  • Halyard and control line deflection on boats to 11m (36ft)

MATERIALS

  • Cheek plates: Anodised aluminium
  • U.V. stabilised Acetal sheaves
  • Grade 316 stainless steel hubs
