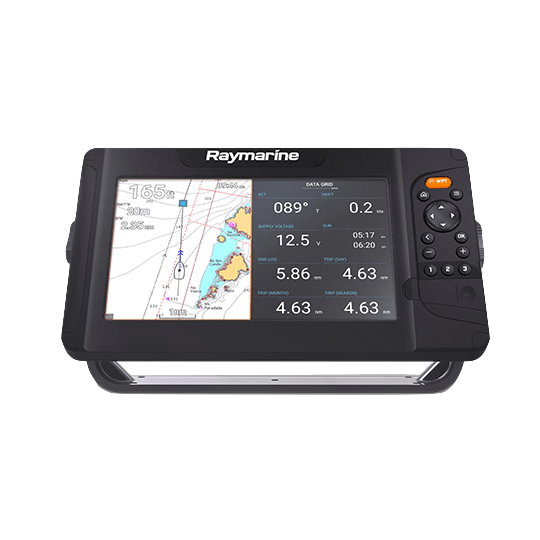

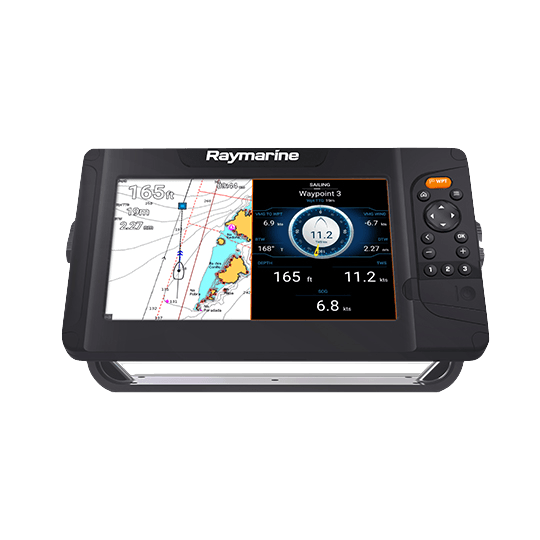

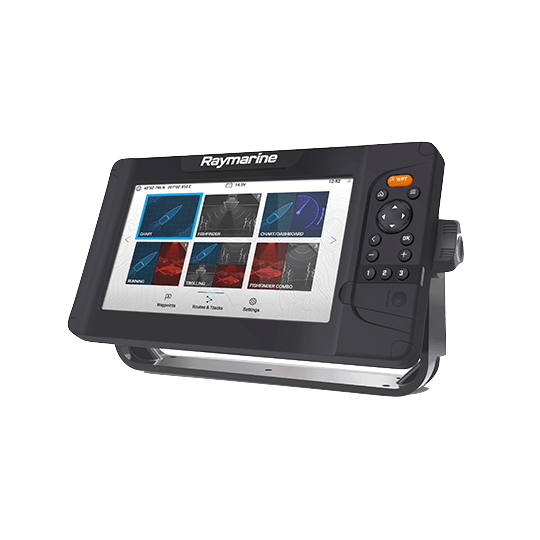

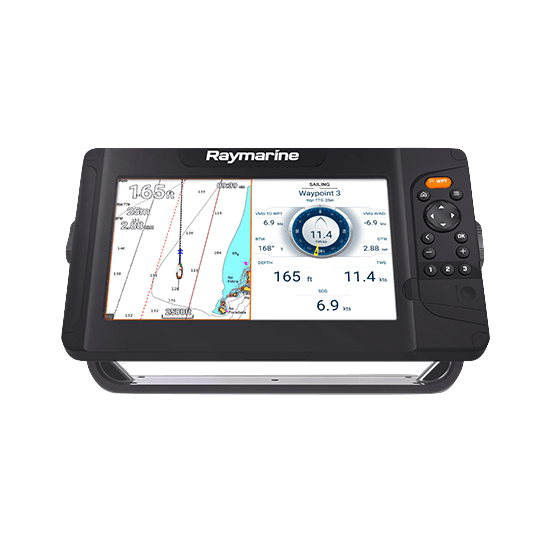

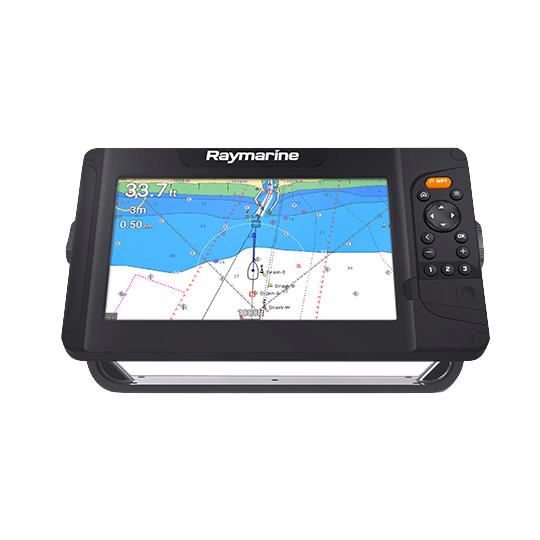

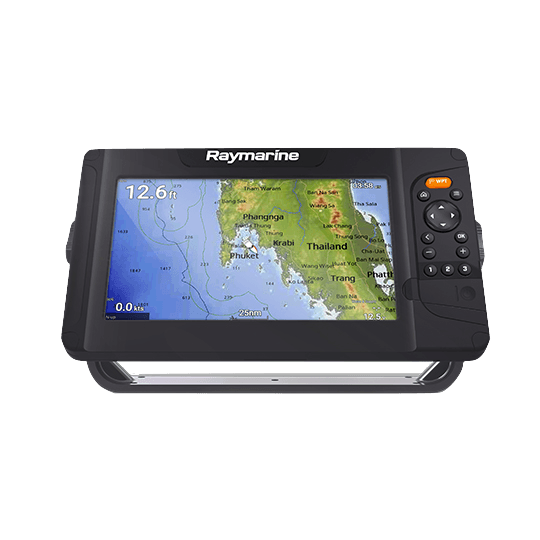

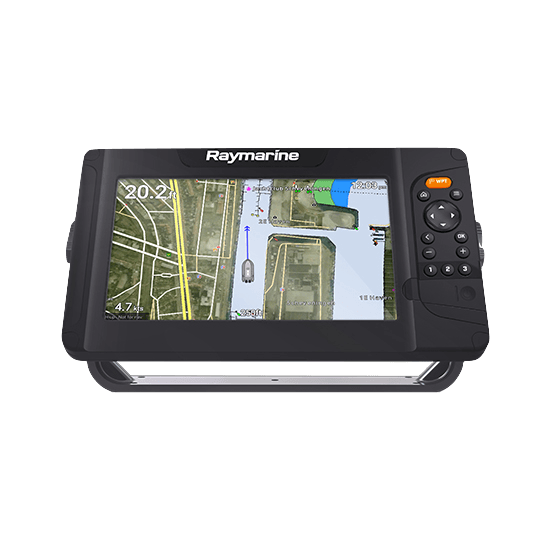

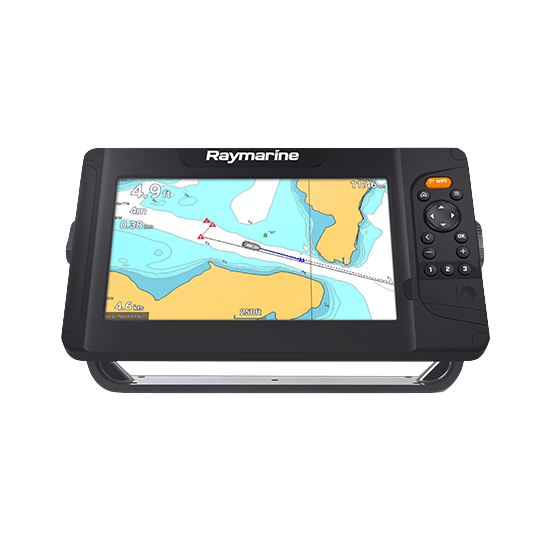

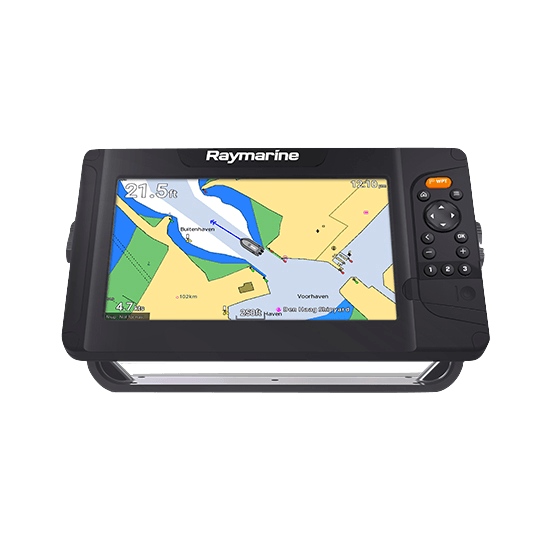

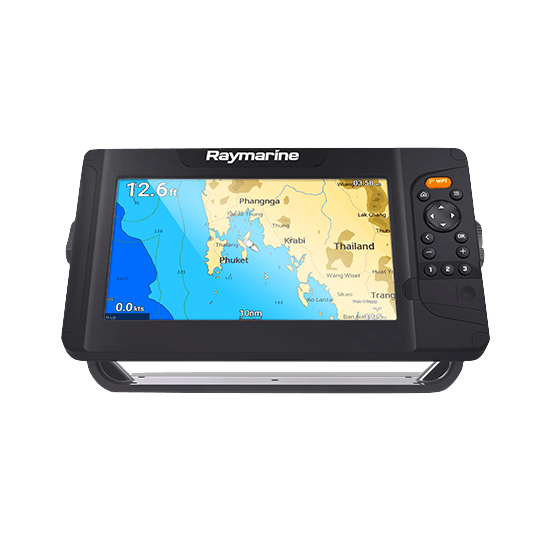

Name: Raymarine Element S 7"-12" Navigation Display
Brand: Pacific Sailboat Supply
SKU: 1018273
Price: 649.99 USD
Availability: InStock

The Element S series of navigation displays gives you the freedom to enjoy the open waters—Select your destination and let Element’s fast and accurate 10Hz GPS/GNSS lead the way. Engineered for simplicity and affordable performance, Element S will quickly become your trusted cruising companion. A quad-core processor offers responsive performance and Element’s all-weather, sunlight viewable displays deliver chart and navigation data in beautiful color. Element’s simple and straightforward LightHouse Sport operating system lets you navigate with confidence. Once underway, Element S will keep you on course with a smart list of user-friendly features, such as AIS target overlays, autopilot integration, and sailing instruments displays.

SUPERIOR PERFORMANCE

Enjoy legendary Raymarine display and navigation technology at an affordable price.

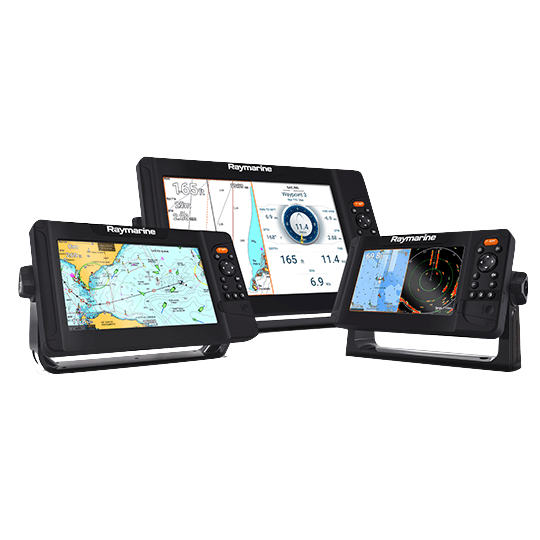

7, 9, and 12 inch super bright display for all weather conditions
Category-leading quad-core processor delivers fast chart redraw and responsive performance
Fast and accurate 10hz GPS/GNSS sensor
Rugged design and backed by Raymarine’s three-year warranty (product registration required)

TRANSDUCERS & CONNECTIONS

High CHIRP Transducers

Compatible with the CPT-S family of transom and thru-hull transducers.

Connections

Power
NMEA2000 integration with AIS, autopilot, sailing instruments, engines, tanks sensors, and VHF
Wi-Fi connection to Quantum radar

GENERAL SPECIFICATIONS

Display Size	7.0" Optically Bonded LCD	9.0" Optically Bonded LCD	12.0" Optically Bonded LCD
Display Resolution	800 x 480 WVGA		1280 x 800 WXGA
Display Type	Non-Touch
Brightness	1,500 nits

PHYSICAL

Overall Dimensions W x H x D (mm)	240 x 135 62mm (9.5 x 5.3 x 2.4 inches)	287 x 161 x 62mm (11.3 x 6.3 x 2.4 inches)	357 x 215 x 62mm (14.1 x 8.5 x 2.4 inches)
Product Weight (lbs)	3.0	5.0	6.5
Water Ingress Protection	IPx6 and IPx7
Operating Temperature Range	-25°C to + 55°C (-13°F to 131°F)
Storage temperature range	-30°C to +70°C (-22°F to 158°F)

POWER

Voltage	12V DC (8V to 16V DC)
Power Consumption (max 12V DC)	15 Watts	20 Watts	25 Watts

SENSORS

GNSS / GPS	Built-in GPS/GLONASS
Sonar Type (Built-in)	Single channel High CHIRP Sonar with 9 pin connector. Supports CPT-S transom and thru-hull transducers
Sonar Depth	CHIRP Sonar = 274m (900 feet)
Radar	Quantum wireless CHIRP compatible Wi-Fi only connection
Doppler Radar	N/A
MARPA	N/A

NETWORKING

NMEA2000	1 x NMEA2000 port (DeviceNet microC)
Supported NMEA2000 Networking	INPUT: NMEA2000 Compatible Engines (Max 2) \| NMEA2000 Compatible Tank Sensors (Max 4) \| Heading Sensor (for Chart Stabilization) OUTPUT: GPS (for VHF Distress and DSC). Waypoint, Routes, and XTE for Autopilot. Waypoint and Route sharing between Element displays
SeaTalk^ng	Requires A06045 DeviceNet female (F) adapter cable - 400mm
Wi-Fi	WiFi - 802.11 b / g / n

OTHER SPECIFICATIONS

Cartography	Raymarine LightHouse NC2, Navionics, C-MAP Essentials, C-MAP 4D MAX+, and compatible with all charts listed on Raymarine Chart Store.
Tides & Currents	Requires LightHouse LNC2, Navionics or *C-MAP
Sonar Mapping	Raymarine RealBathy and Navionics SonarChart Live
Waypoint / Routes / Tracks	5,000 wpts / 200 wpt groups / 50 rts - 250 wpt max / 15 tracks - 10,000 max trk pts
External Memory	1 x microSD slots

WHAT'S IN THE BOX

1	Element display
2	Surface mount gasket
3	Suncover
4	Trunnion knobs x2
5	Documentation pack
6	Trunnion bracket
7	Surface mount stainless steel fixings x4 (M4x40 machine screw, M4 flatwasher, M4 lockingnut)
8	Power / NMEA2000 cable (includes 1.5m (4.92ft) power lead and 0.5m (1.64ft) NMEA2000 lead).
