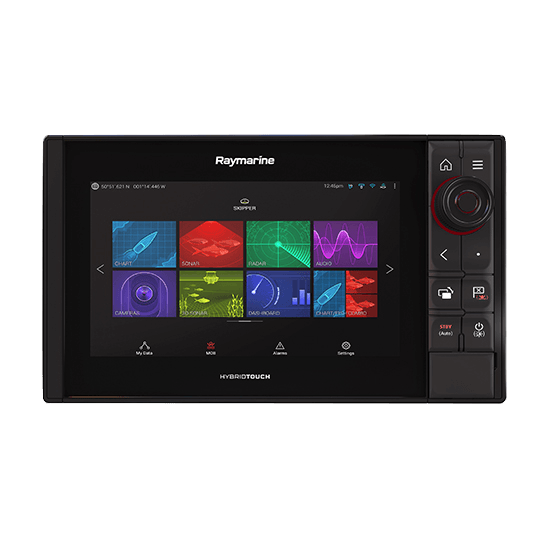

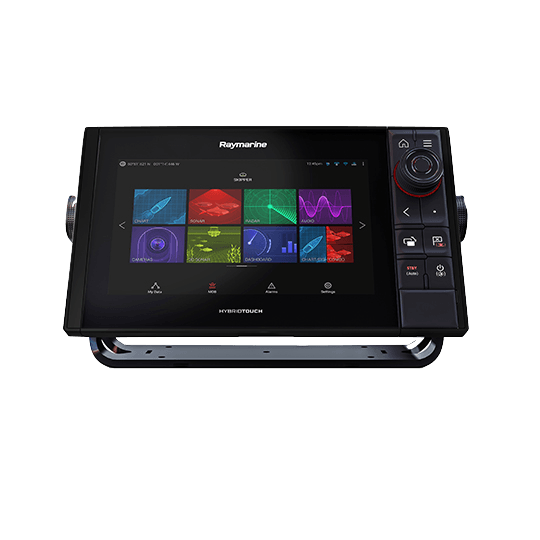

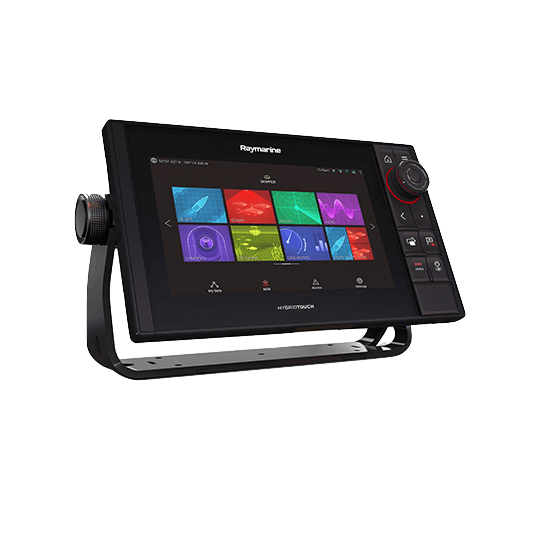

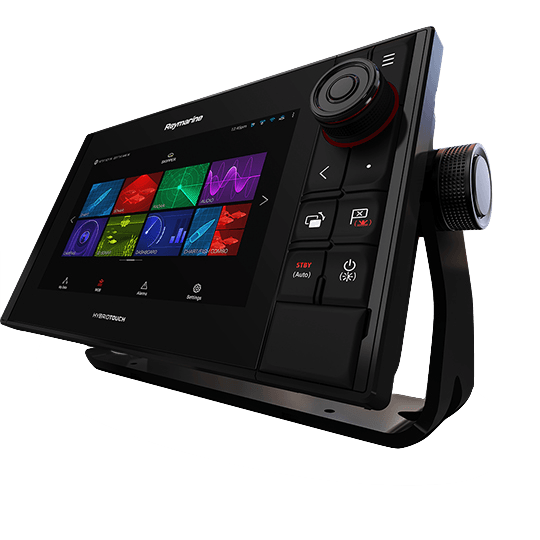

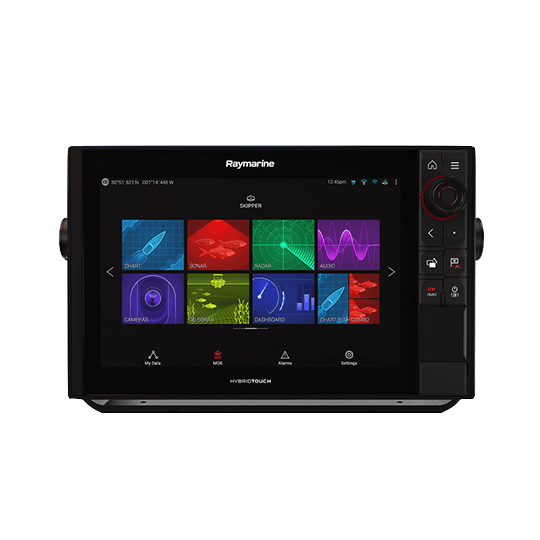

Raymarine E70481 Axiom Pro 9 High Performance Multifunction 9" Hybridtouch Navigation Display With Chirp Sonar

Sale price$2,350.00

HIGH PERFORMANCE NAVIGATION

Axiom Pro is engineered for captains that want it all. Available with RealVision 3D, 1kW CHIRP sonar, and Raymarine HybridTouch control, Axiom Pro is the new standard for “allin-one” multifunction devices. And with a blazing fast quad core processor, a super bright high-defi nition IPS display, and the smart LightHouse OS, Axiom Pro delivers a fl uid and intuitive navigation experience. Axiom Pro is easy to expand into an advanced navigation network that includes multiple Raymarine Axiom displays, CHIRP radar, Evolution autopilot, FLIR thermal night vision technology, and more.



Sonar is Standard
Axiom Pro is available with a single channel High CHIRP sonar built in. For offshore anglers choose Axiom Pro with RealVision 3D sonar plus a 1kW sonar built-in.

Intuitive Control
Simple-to-use Lighthouse 3 OS with HybridTouch control gives captains the flexibility of multi-touch interaction and rough weather keypad control.

Powerful Performance
Quad Core processing combined with super bright, high definition IPS display technology delivers blazing speed and stunning clarity.

Display Size 9" IPS Optically Bonded LCD
Display Resolution 1280 x 720 WXGA
Display Type Multitouch
Brightness 1,200 nits
Viewing Angle

Degrees: 88 / 88 / 88 / 88 (Top / Bottom / Left / Right)



Dimensions 11.9" x 6.85" x 2.56" (300 x 174 x 65 mm)
Weight 4kg (8.82lbs)
Mounting Top, Front, Bracket
Waterproof Rating IPX6 / IPX7
Operating Temp minus 13deg F to 131deg F (-25deg C to +55deg C)
Storage Temp minus 22deg F to 158deg F (-30deg C to +70deg C)
POWER
Voltage 12V and 24V DC (8 V to 32 DC)
Power Consumption (Full brightness) Axiom Pro 9: ~20W



GNSS / GPS Built-in GNSS Receiver: GPS/GLONASS/Galileo/Beidou - 10Hz 72 Channel | External Accessory: GA150 (A80288)
Sonar Type - Built-in Pro S model - High CHIRP*
Pro RVX model - RealVision 3D + 1kW Sonar
Sonar Connections S variant*= 25pin connector used only with CPT-S transducers
RVX variant = 25pin RealVision™ type connector + 11 pin 1kW type connector
*Pro S can only be used with CPT-S transducers. Requires A80490 adaptor cable.
External Sonar - RayNet
Sonar Depth CHIRP Sonar = 900 feet (274 m)
DownVision™ = 600 feet (183 m) | SideVision™ = 300 feet (91 m) | RealVision™ 3D = 300 feet (91 m) 1kW = 5,000 feet (1,500 m)
External Sonar Yes - CP100, CP200, CP370, CP470, CP570 via RayNet
Radar Yes - Quantum, Digital, HD Color and Super HD Color Radars
AIS Yes - N2K compatible
Autopilot Control Yes - Evolution Autopilot
Thermal Night Vision Yes - IP or Analogue
Video / Camera 1 x Analogue input (BNC) Up to 10 IP Cameras
Weather GRIB View - Free GRIB viewer and Theyr Ltd Subscription | SiriusXM - N. America Only
[Weather features available in future Lighthouse 3 software update]
Audio N2K / *Bluetooth / *SiriusXM Audio
[*Available in future Lighthouse 3 software update]
Digital Switching Yes - Empirbus & C-Zone compatible [C-Zone integration available in future Lighthouse 3 software update]
Remote Control RMK-10 (A80438) & RCU-3 (E62351)



Ethernet 2 x 10/100 Mbit/s Network (RayNet)
NMEA0183 1 Transmit / 2 Receive
NMEA2000 1 x NMEA2000 port (DeviceNet microC)
SeaTalkNG Requires DEVICENET FEMALE (F) ADAPTOR CABLE (A06075 1m adaptor included in box)
USB 1 x USB microAB (rear - charging, external storage device or RCR-SD/USB Accessory (A80440)
Wi-Fi WiFi - 802.11 a / b / g / n
BlueTooth Bluetooth 4.0 + Low Energy + Power Class 1.5 [Available in future Lighthouse 3 software update]



Cartography Lighthouse, Navionics, *C-MAP Essentials & *C-MAP 4D MAX+
[*C-MAP chart compatibility available in future Lighthouse 3 software update]
Waypoint/Routes/Tracks (Wpts/Rts/Trk) 10,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk pts
MEMORY
Internal 16GB Solid State
External 2 x microSD slots (front) - microSDHC max 32GB NTFS or FAT32 format / microSDXC max 2TB NTFS or FAT32 format
(microSD native format of exFAT must be reformatted to NTFS or FAT32)
OTHER
Languages 24
Conformances

NMEA 2000 certification | Europe: 1999/5/EC | Australia and New Zealand: C-Tick, Compliance Level 2 | FCC 47CFR part 15 | Industry Canada RSS210



AXIOM PRO 9 WHAT'S IN THE BOX

IN THE BOX
A MFD Display (E70481 or E70371)
B RayNet (F) to Raynet (F) Cable – 2M (A62361)
C Trunnion Cover
D Trunnion Knobs
E Trunnion Bracket
F Suncover (A80534)
G Power / Video / NMEA0183 Cable - Straight, 1.5M (R62379)
H Micro-C DeviceNet (F) to STNG (F) Cable - 1M (A06075)
I Panel Seal Gasket
J Bezel Pieces and Home / Menu Button
K Mounting Fixings
Quick Start Guide
Warranty Card
Raymarine window decal
