Lewmar DC-2 Double Rope / Line Clutch Sailboat Deck Organizer (8-14Mm)

Name: Lewmar DC-2 Double Rope / Line Clutch Sailboat Deck Organizer (8-14Mm)
Brand: Pacific Sailboat Supply
SKU: 123102
Price: 267.8 USD
Availability: InStock

$267.80

$340.95

LEWMAR

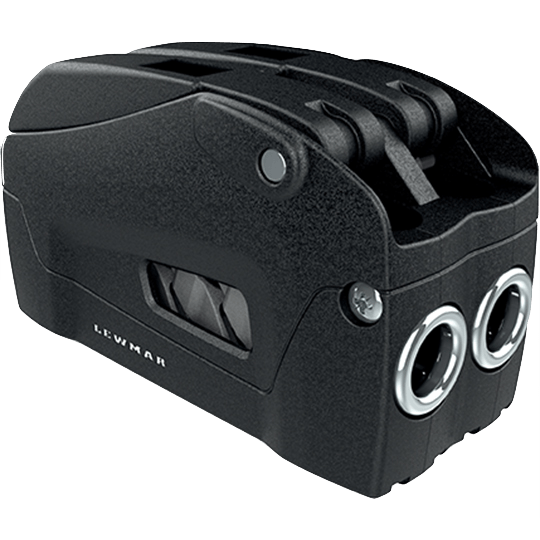

DC2 Double Rope Clutch - Black

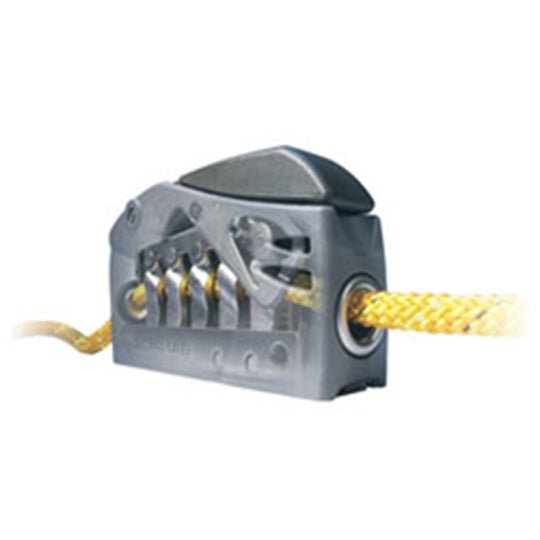

Lewmar has redefined rope clutch technology with a variable geometry handle and unique grip pattern of dominoes that prevent rope fray. This revolutionary system has been independently tested time and again and has won awards for its innovative framework.

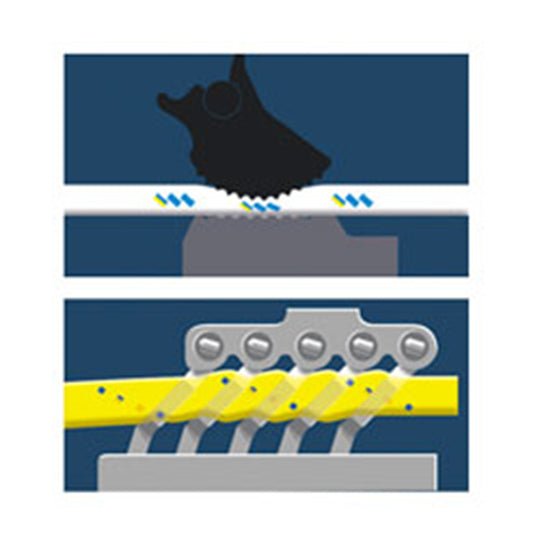

Domino Cluster and longer holding pattern holds line under load without fraying the rope
Controlled Release - Pull-back handle, combined with patented clutch and release mechanism, provides controlled release even at full holding load
Handle has a solid link to the domino cluster
Easy installation
Includes decals

DC2 Rope Clutch Features:

High-load applications on boats up to 55 ft.
Low load and control line applications on larger boats
Line sizes from 5/16" (8mm) to 9/16" (14mm)
Safe Working Load - 2,650 Lbs
Fasteners and position per industry standards
Use 5/16" (M8) panhead fasteners (not included) - Do not tighten beyond 22N.m torque

2910 2410 BK	DC2 Double	5/16"-3/8" (8-10mm)	1,102 Lbs (500kg)	6-1/8" x 2-11/16" x 3-3/8" (156 x 68.5 x 88mm)	1" (26mm)	1-5/16 (32mm)
2910 2412 BK	DC2 Double	3/8"-7/16" (10-12mm)	1,550 Lbs (700kg)	6-1/8" x 2-11/16" x 3-3/8" (156 x 68.5 x 88mm)	1" (26mm)	1-5/16" (32mm)
2910 2414 BK	DC2 Double	1/2"-9/16" (12-14mm)	2,204 Lbs (1,000kg)	6-1/8" x 2-11/16" x 3-3/8" (156 x 68.5 x 88mm)	1" (26mm)	1-5/16" (32mm)

When installing Lewmar rope clutches, note that the hinged end of the clutch handle typically faces aft, away from the direction of the load. Also, line entry and exit angles should not exceed 15 degrees from the rope clutch center line.

Line Size:

8-10 mm 10-12 mm 12-14 mm
