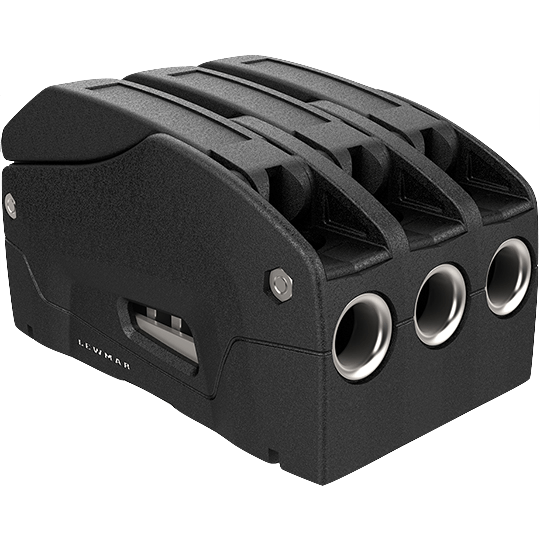

Lewmar DC-1 Triple Rope / Line Clutch Sailboat Deck Organizer (10-12Mm)
LEWMAR
DC1 Rope Triple Clutches - Black
Lewmar has redefined rope clutch technology with a variable geometry handle and unique grip pattern of dominoes that prevent rope fray. This revolutionary system has been independently tested time and again and has won awards for its innovative framework.
DC1 Rope Clutch Features:
When installing Lewmar rope clutches, note that the hinged end of the clutch handle typically faces aft, away from the direction of the load. Also, line entry and exit angles should not exceed 15 degrees from the rope clutch center line.
DC1 Rope Triple Clutches - Black
Lewmar has redefined rope clutch technology with a variable geometry handle and unique grip pattern of dominoes that prevent rope fray. This revolutionary system has been independently tested time and again and has won awards for its innovative framework.
- Domino Cluster and longer holding pattern holds line under load without fraying the rope
- Controlled Release - Pull-back handle, combined with patented clutch and release mechanism, provides controlled release even at full holding load
- Handle has a solid link to the domino cluster
- Easy installation
- Includes decals
DC1 Rope Clutch Features:
- High-load applications on boats up to 32 ft.
- Low load and control line applications on larger boats
- Line sizes from 1/4" (6mm) to 7/16" (12mm)
- Safe Working Load - 1,100 Lbs
- Fasteners and position per industry standards
- Use 1/4" (M6) panhead fasteners (not included) - Do not tighten beyond 10N.m torque
| 2910 1312 BK | DC1 Triple | 3/8"-7/16" (10-12mm) |
1,100 Lbs (500kg) |
5" x 3-5/16" x 2-13/16" (126 x 83.7 x 72mm) |
1-1/8" (27mm) |
1-3/16" (29mm) |
When installing Lewmar rope clutches, note that the hinged end of the clutch handle typically faces aft, away from the direction of the load. Also, line entry and exit angles should not exceed 15 degrees from the rope clutch center line.
Lewmar DC-1 Triple Rope / Line Clutch Sailboat Deck Organizer (10-12Mm)
Sale price$275.97
Regular price$363.95
Choose options
Lewmar DC-1 Triple Rope / Line Clutch Sailboat Deck Organizer (10-12Mm)
Sale price$275.97
Regular price$363.95
