Lewmar DC-1 Single Rope 1/4"-7/16" Line Clutch Sailboat Deck Organizer

Sale price$116.41 Regular price$147.95
LEWMAR

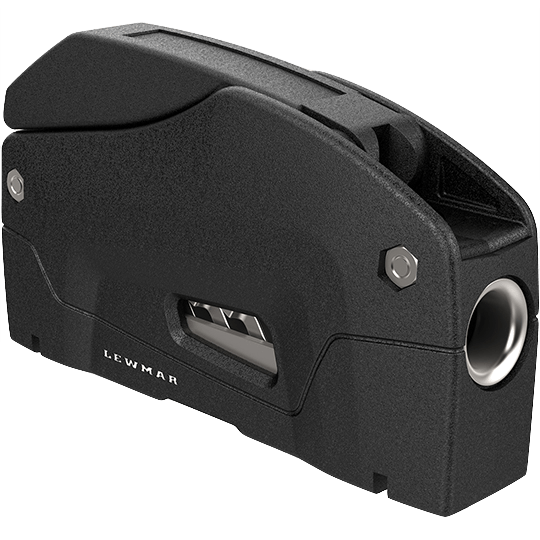

DC1 Rope Single Clutch - Black

Lewmar has redefined rope clutch technology with a variable geometry handle and unique grip pattern of dominoes that prevent rope fray. This revolutionary system has been independently tested time and again and has won awards for its innovative framework.

  • Domino Cluster and longer holding pattern holds line under load without fraying the rope
  • Controlled Release - Pull-back handle, combined with patented clutch and release mechanism, provides controlled release even at full holding load
  • Handle has a solid link to the domino cluster
  • Easy installation
  • Includes decals

DC1 Rope Clutch Features:
  • High-load applications on boats up to 32 ft.
  • Low load and control line applications on larger boats
  • Line sizes from 1/4" (6mm) to 7/16" (12mm)
  • Safe Working Load - 1,100 Lbs
  • Fasteners and position per industry standards
  • Use 1/4" (M6) panhead fasteners (not included) - Do not tighten beyond 10N.m torque


Mfg No. Size /
Description		 Line Size Min Holding
Load		 Dimensions
(L x W x H)		 Line Entry
Height		 Line Exit
Height
2910 1108 BK DC1 Single 1/4"-5/16"
(6-8mm)		 661 Lbs
(300kg)		 5" x 1-5/16" x 2-13/16"
(126 x 32 x 72mm)		 1-1/8"
(27mm)		 1-3/16"
(29mm)
2910 1110 BK DC1 Single 5/16"-3/8"
(8-10mm)		 880 Lbs
(400kg)		 5" x 1-5/16" x 2-13/16"
(126 x 32 x 72mm)		 1-1/8"
(27mm)		 1-3/16"
(29mm)
2910 1112 BK DC1 Single 3/8"-7/16"
(10-12mm)		 1,100 Lbs
(500kg)		 5" x 1-5/16" x 2-13/16"
(126 x 32 x 72mm)		 1-1/8"
(27mm)		 1-3/16"
(29mm)
