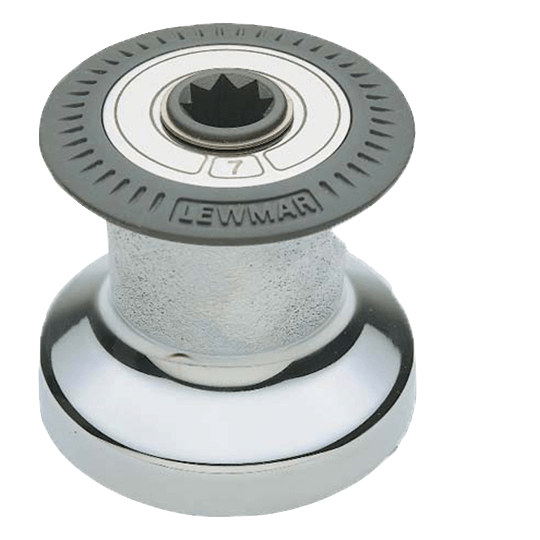

Lewmar 7-C Ocean Plain-Top One-Speed Chrome Sailboat Winch
LEWMAR
Standard Aluminum Winch
One Speed
Lewmar has created a winch range that incorporates many exciting features, all brought together with a blend of traditional skills and high technology. The Standard Winch is a high-quality, hard-wearing control solution. The long glass-fiber-reinforced, composite plastic stem is strong and lightweight, while also providing efficient plain bearing. In addition to technical innovation and high performance, Lewmar also features fine aesthetic appearance and finish. All winches are supported by a comprehensive range of winch spares.
Mounting Instructions:
5 x 1/4" (M6) countersunk-head fasteners on 3-5/32" (80mm) PCD (Pitch Circle Diameter). Lewmar recommends mounting the winch on a flat surface. The rope should enter the drum at an angle of 5° to 10° to the base axis of the winch. To achieve this angle, it may be necessary to use a base wedge.
Standard Aluminum Winch
One Speed
Lewmar has created a winch range that incorporates many exciting features, all brought together with a blend of traditional skills and high technology. The Standard Winch is a high-quality, hard-wearing control solution. The long glass-fiber-reinforced, composite plastic stem is strong and lightweight, while also providing efficient plain bearing. In addition to technical innovation and high performance, Lewmar also features fine aesthetic appearance and finish. All winches are supported by a comprehensive range of winch spares.
Mounting Instructions:
5 x 1/4" (M6) countersunk-head fasteners on 3-5/32" (80mm) PCD (Pitch Circle Diameter). Lewmar recommends mounting the winch on a flat surface. The rope should enter the drum at an angle of 5° to 10° to the base axis of the winch. To achieve this angle, it may be necessary to use a base wedge.
- Gear Ratio - 1:1
- Power Ratio - 7.9:1
- Safe Working Load - 752 Lbs (341kg)
- Drum Diameter - 2-9/16" (65mm)
- Base Diameter - 4-1/4" (108mm)
- Height - 4" (102mm)
- Line Entry Height - 1-9/16" (40mm)
- Weight - 3.7 Lbs (1.7kg)
Choose options
Lewmar 7-C Ocean Plain-Top One-Speed Chrome Sailboat Winch
Sale price$332.61
Regular price$475.95
