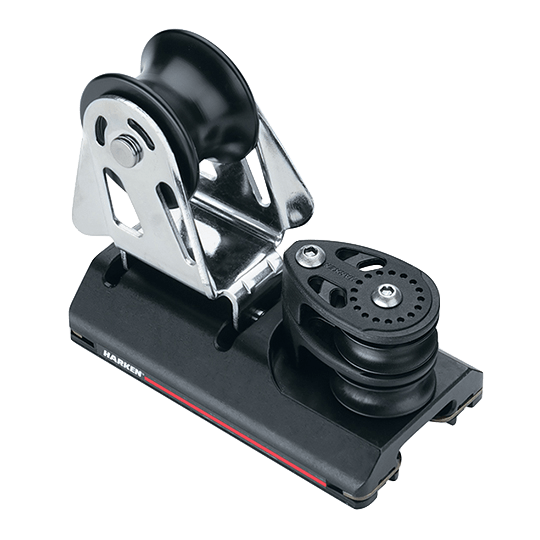

Harken G274B 27mm Midrange CB Adjustable Twin Genoa Lead Car
HARKEN
CB (Captive Ball) Adjustable Genoa Lead Car
27mm Midrange with Double Sheave
Recirculating Torlon® ball bearings allow CB (captive ball bearing) genoa lead cars to adjust easily under full sheet loads. Sheaves feature high-load axle bearings for easy trimming. The wide sheaves accommodate two sheets during sail changes. Sheave carriers pivot to adapt to changing lead angles. (Torlon® is a registered trademark of Solvay Advanced Polymers.)
Note: CB cars roll only on CB track. Older tracks do not have the grooves at the waist for the retaining clips. If cars do not fit, you must replace your track.
CB (Captive Ball) Adjustable Genoa Lead Car
27mm Midrange with Double Sheave
Recirculating Torlon® ball bearings allow CB (captive ball bearing) genoa lead cars to adjust easily under full sheet loads. Sheaves feature high-load axle bearings for easy trimming. The wide sheaves accommodate two sheets during sail changes. Sheave carriers pivot to adapt to changing lead angles. (Torlon® is a registered trademark of Solvay Advanced Polymers.)
- Captive ball bearings make cars easy to load and maintain
- Free-running ball bearings in car and in genoa sheave - Make it easy to adjust car under load
- One-Piece Body - Machined from 6061-T6 aluminum for strength & durability
- Hardkote Anodized - PTFE-impregnated for durability
- 4:1 Purchase when combined with E2750 Double-Sheave End Control
- Fits Harken R27 and 1602 CB track*
Note: CB cars roll only on CB track. Older tracks do not have the grooves at the waist for the retaining clips. If cars do not fit, you must replace your track.
| Mfg No. | Sheave Diameter |
Dimensions (L x W) |
Max Line Diameter |
MWL1 | BL2 | Weight |
| G274B | 2-1/4" (57mm) |
5-3/16" x 2-3/4" (132 x 70mm) |
1/2" (12mm) |
2,300 Lbs (1,043kg) |
5,000 Lbs (2,268kg) |
24.06 oz. (682g) |
Harken G274B 27mm Midrange CB Adjustable Twin Genoa Lead Car
Sale price$467.95
Regular price$531.30
