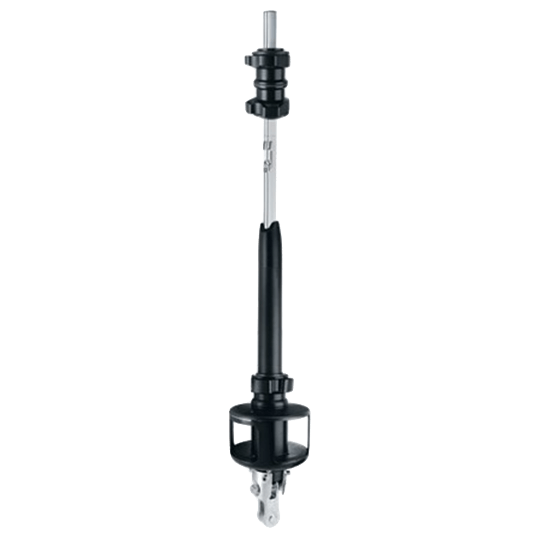

Harken 7414.10 Unit 4 MKIV Racing Jib Reefing Furling System
Harken 7414.10 Unit 4 MKIV Racing Jib Reefing Furling System
DOES NOT INCLUDE TOGGLES, BUT THEY ARE AVAILABLE.
MKIV furling systems are strong, lightweight and aerodynamic, with the performance and features Harken® is known for. Longevity, ease of use, and simplicity of installation are crucial components of the design.

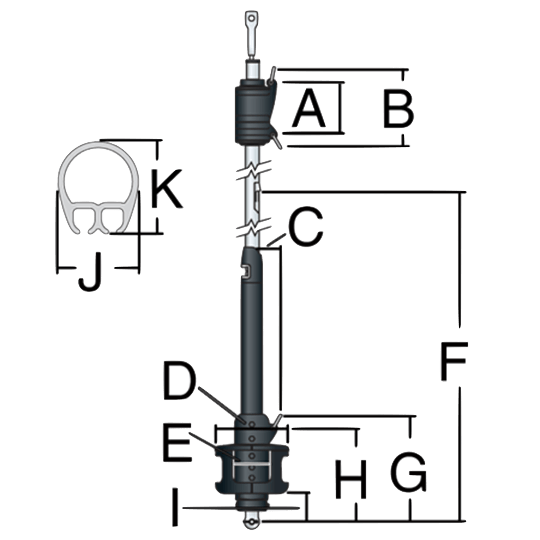

| A (mm) | 227 mm |
| A (in) | 8 15/16 in |
| B (in) | ** in |
| C (in) | ** in |
| Wire Ø (1 x 19 SS) (mm) | 16 mm |
| Wire Ø (1 x 19 SS) (in) | 9/16 in |
| Rod Ø (mm) | 14.3 mm |
| Rod Ø (dash) | -48 |
| Clevis pin Ø (mm) | 28.57 mm |
| Clevis pin Ø (in) | 7/8 in |
| Standard headstay length (m) | 22.88 m |
| Standard headstay length (ft in) | 75' 1" ft in |
| Maximum headstay length (m) | 27.15 m |
| Maximum headstay length (ft in) | 89' 1" ft in |
| D (mm) | 280 mm |
| D (in) | 11 1/16 in |
| E (mm) | 130 mm |
| E (in) | 5 1/8 in |
| F (mm) | 1405 mm |
| F (in) | 55 5/16 in |
| F maximum (mm) | 1405 mm |
| F maximum (in) | 55 5/16 in |
| G maximum (in) | ** in |
| G minimum (in) | ** in |
| H (mm) | 509 mm |
| H (in) | 20 in |
| H maximum (mm) | 509 mm |
| H maximum (in) | 20 in |
| I (mm) | 220 mm |
| I (in) | 8 5/8 in |
| I maximum (mm) | 220 mm |
| I maximum (in) | 8 5/8 in |
| J (mm) | 44 mm |
| J (in) | 1 3/4 in |
| K (mm) | 47 mm |
| K (in) | 1 27/32 in |

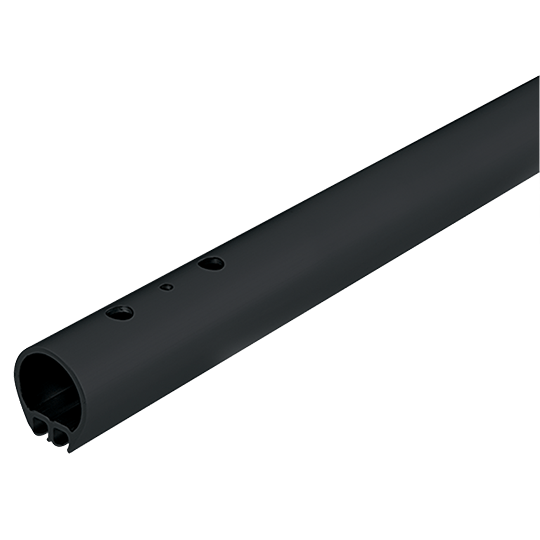

| Extrusion length (m) | 2.13 m |
| Extrusion length (ft in) | 7' ft in |
| Luff tape size (mm) | 5 mm |
| Luff tape size (in) | #6 (6/32) in |
