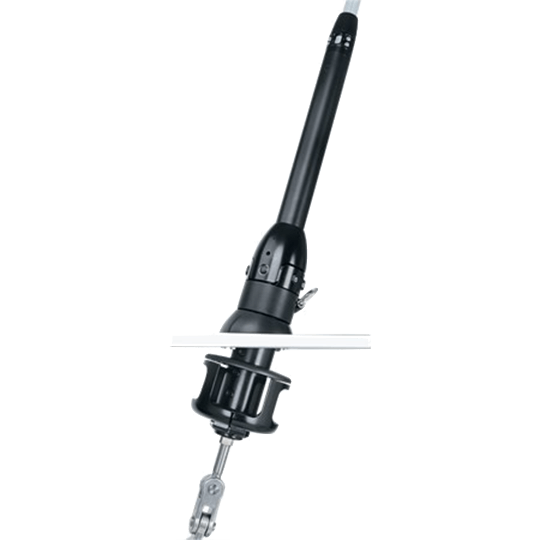

Harken 7411.11 1/2 MKIV Unit 1 Underdeck Jib Reefing Furling System
Harken’s MKIV Underdeck Jib Reefing & Furling line is the perfect solution for sailors who want an aerodynamic system with a minimal amount of equipment above deck. The underdeck furler provides a low-friction, clean layout solution that minimizes windage, while uncluttering the bow for easy anchor access. Tack sits at deck level, lowering the tack height for maximized sail area. Through-deck bearing into underdeck compartment provides a low profile, nearly watertight system. Typical Boat Length 8.3 - 11 m (28' - 36')
Harken’s MKIV Underdeck Furling is the perfect solution for performance racers and cruisers who want an aerodynamic system with a minimal amount of equipment above deck. The drum is located beneath the deck, lowering the tack height for maximized sail area.

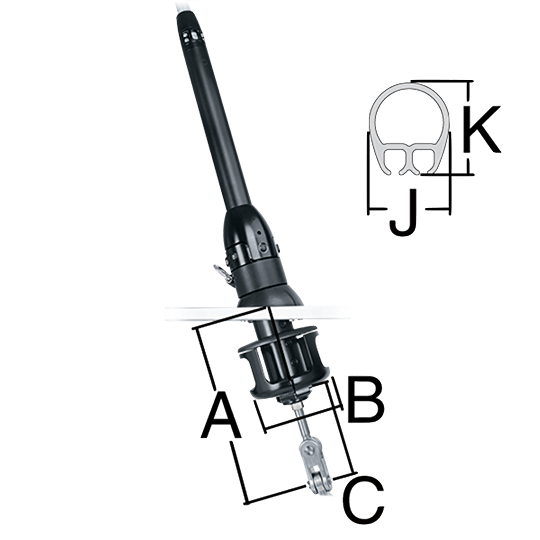

B (mm) | 140 mm |
B (in) | 5 1/2 in |
Wire Ø (1 x 19 SS) (mm) | 8 mm |
Wire Ø (1 x 19 SS) (in) | 9/32 in |
Rod Ø (mm) | 6.35 mm |
Rod Ø (dash) | -8 |
Clevis pin Ø (mm) | 12.7 mm |
Clevis pin Ø (in) | 1/2 in |
Standard headstay length (m) | 13.99 m |
Standard headstay length (ft in) | 45' 11" ft in |
Maximum headstay length (m) | 16.12 m |
Maximum headstay length (ft in) | 52' 11" ft in |
A minimum (mm) | 270 mm |
A minimum (in) | 10 5/8 in |
A maximum (mm) | 397 mm |
A maximum (in) | 15 5/8 in |
C minimum (mm) | 117 mm |
C minimum (in) | 4 5/8 in |
C maximum (mm) | 244 m |
C maximum (in) | 9 5/8 in |
J (mm) | 25 mm |
J (in) | 1 in |
K (mm) | 29 mm |
K (in) | 1 1/8 in |

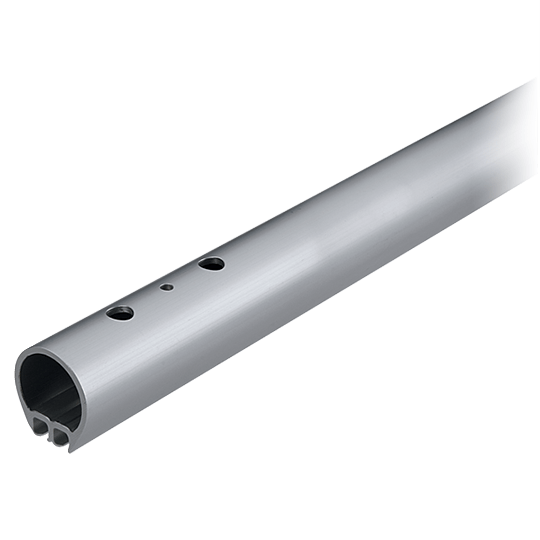

Extrusion length (m) | 2.13 m |
Extrusion length (ft in) | 7 ft in |
Luff tape size (mm) | 5 mm |
Luff tape size (in) | #6 (6/32) in |
