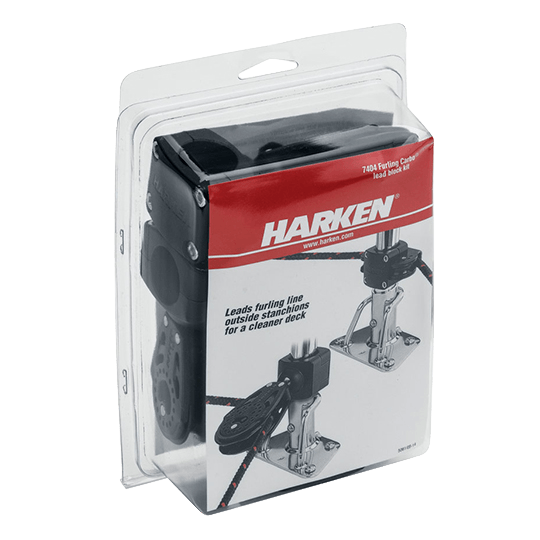

Harken 7404 Stanchion Lead Block Assembly Kit For Headsail Handling Or Furling Systems
HARKEN
Furling Lead Blocks
Carbo Lead Block Assemblies
For 1" (25mm) Pulpit and Stanchion Mounts
Harken recommends equipping every furling system with Carbo lead blocks for safe furling from the cockpit. These lightweight, UV-stabilized Carbo blocks run exclusively on ball bearings for fast trimming under any load. They mount with a strong 4-screw clamp without removing the stanchion or lifelines. Available as individual assemblies or a Jib Reefing & Furling Carbo Lead Block Kit containing each assembly.
Pulpit Mount
These assemblies have a ball and socket base to use on the bow pulpit as an inboard lead to align blocks for smooth leads aft. The 7402 Ratchet model also maintains tension when spooling so the unit can furl smoothly and easily.
Stanchion Mount
This outboard assembly allows furling line to travel outboard of stanchions to keep the sidedeck clear.
7404 Kit includes:
Furling Lead Blocks
Carbo Lead Block Assemblies
For 1" (25mm) Pulpit and Stanchion Mounts
Harken recommends equipping every furling system with Carbo lead blocks for safe furling from the cockpit. These lightweight, UV-stabilized Carbo blocks run exclusively on ball bearings for fast trimming under any load. They mount with a strong 4-screw clamp without removing the stanchion or lifelines. Available as individual assemblies or a Jib Reefing & Furling Carbo Lead Block Kit containing each assembly.
Pulpit Mount
These assemblies have a ball and socket base to use on the bow pulpit as an inboard lead to align blocks for smooth leads aft. The 7402 Ratchet model also maintains tension when spooling so the unit can furl smoothly and easily.
- 7401 - 40mm Carbo Lead Block Assembly
- 7402 - 57mm Carbo Rachet Lead Block Assembly
Stanchion Mount
This outboard assembly allows furling line to travel outboard of stanchions to keep the sidedeck clear.
- 7403 - 29mm Outboard Lead Block Assembly
7404 Kit includes:
- (3) 7403 (Outboard Lead Blocks, 29mm)
- (1) 7401 (Carbo Lead Block, 40mm)
- (1) 7402 (Carbo Ratchet Lead Block, 57mm)
- (1) Open-base aluminum deck cleat, 4"
| Mfg No. | Description | Maximum Line Diameter |
Sheave Diameter |
Maximum Working Load |
Weight |
| 7404 | Furling Lead Block Kit | 3/8" (10mm) |
--- | --- | 19.2 oz. |
