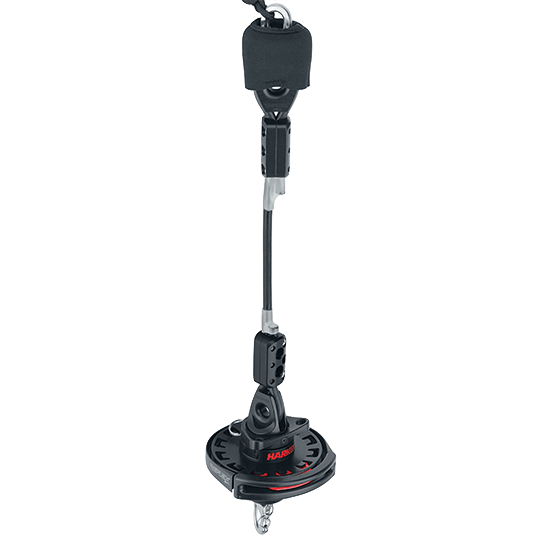

Harken 7353.10 Reflex Unit 3 Top Down Furling System - Asymmetric Spinnaker

Sale price$6,128.95 Regular price$6,965.05
Cable Length:

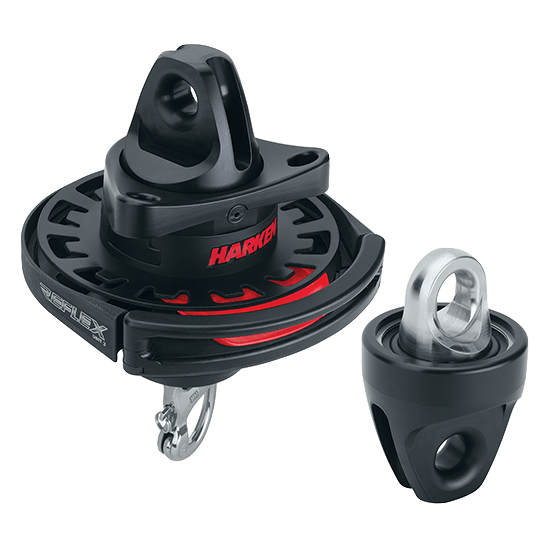

The Harken Reflex furling system is a game changer! The previous generation of free-flying sail furlers often resulted in partial or uneven furling. Patent-pending Harken Reflex furlers provide sailors confidence that their free-flying spinnakers and gennakers will furl with speed and control. The result? Sailors use downwind sails more often—even when sailing shorthanded. The compact drive unit is easier to handle than other designs. Pull the furling line and the drive unit reacts reflexively to rotate the torsion cable, immediately transferring torque to the head swivel without unwanted corkscrewing delaying the response. The head swivel reacts instantly, spinning the sail smoothly and completely from top to bottom for an even roll-up and super-tight wrap. The furled spinnaker lowers easily to the deck, ready for the next hoist.

The Reflex cable is more torsionally resistant to corkscrewing than the current textile cables. Braided stainless steel wire filaments over braided polyester core transmit torque to head swivel through both tension and compression for faster furling (textile cable transmits through tension only).

The quick-release modular T-fitting allows a single drive unit to handle multiple sails.

UP TO 58'

Sail type: Asymmetric spinnaker
Boat length - monohull (m)13 - 17.7 m
Boat length - monohull (ft)44 - 58 ft
Boat length - multihull (m)12 - 16.7 m
Boat length - multihull (ft)39 - 55 ft
Maximum sail area (m²)223 m²
Maximum sail area (ft²)2400 ft²
Cable length (m)21.95 m
Cable length (ft)72 ft
Line Ø (mm)10 mm
Line Ø (in)3/8 in
Maximum working load (kg)4500 kg
Maximum working load (lb)10000 lb
