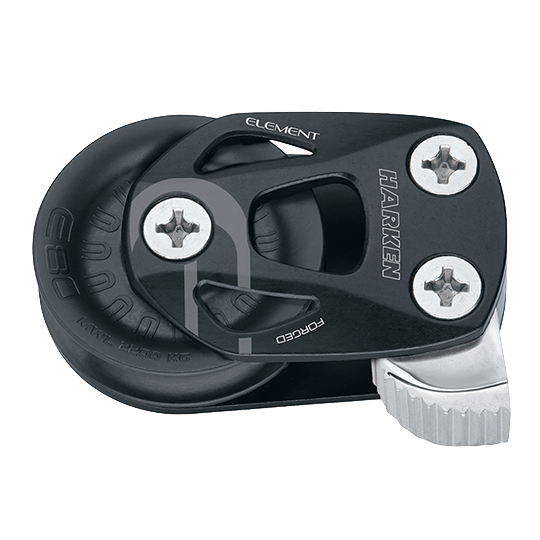

Harken 6299 80mm Single Element Left Lockoff Footblock

Sale price$126.10

Element blocks introduce sideplates that combine forged aluminum and compound curves for strength. They are simultaneously contemporary and very robust. Element’s design pairs the minimum amount of metal required to protect the sheave with a proven journal bearing. So size for size, Element is priced significantly lower, than our previously least expensive blocks.

Sideplates are hardcoat-anodized to resist corrosion. Bearing sheave of tough composite resists corrosion for a long service life.



Sheave Ø (mm)80 mm
Sheave Ø (in)3 1/8 in
Length (mm)114 mm
Length (in)4 1/2 in
Height (mm)36 mm
Height (in)1 7/16 in
Weight (g)410 g
Weight (oz)14.4 oz
Maximum line Ø (mm)16 mm
Maximum line Ø (in)5/8 in
Maximum working load (kg)2200 kg
Maximum working load (lb)4850 lb
Breaking load (kg)4400 kg
Breaking load (lb)9700 lb
Fasteners (mm)10 mm

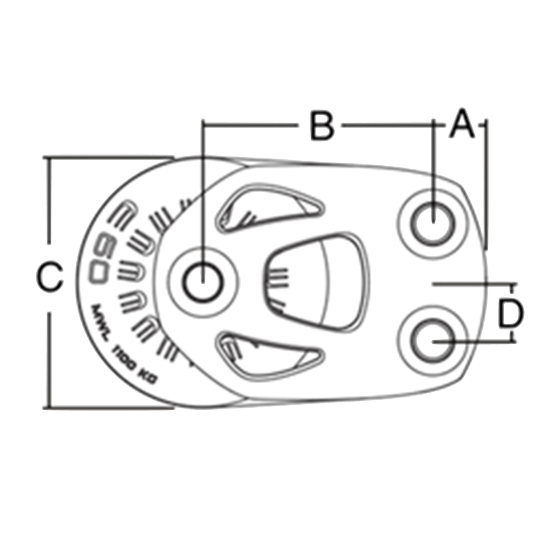

A (mm)19.5 mm
A (in)3/4 in
B (mm)61 mm
B (in)2 13/32 in
C (mm)80 mm
C (in)3 1/8 in
D (mm)19.8 mm
D (in)25/32 in
