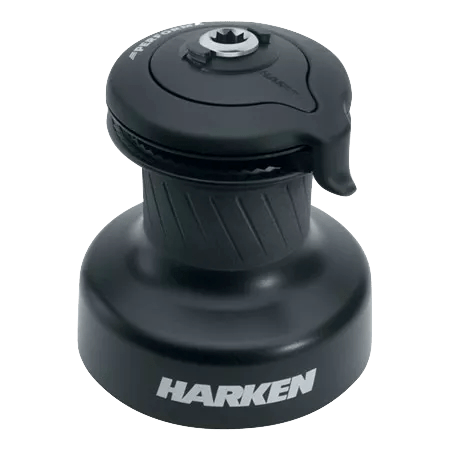

Name: Harken 60 STP Performa Self-Tailing Three-Speed Winch
Brand: Pacific Sailboat Supply
SKU: 386705
Price: 8461.95 USD
Availability: InStock

Harken 60 STP Performa Self-Tailing Three-Speed Winch

Part No. 60.3STP

Maximum line Ø (mm) 16 mm

Maximum line Ø (in) 5/8 in

Configuration Self-tailing

Speed 3

Power ratio - 1 9.20

Power ratio - 2 20.30

Power ratio - 3 61.00

All Performa™ winches feature sandblasted drums optimized for halyard and sheeting applications using small-diameter, high-tech line. Self-tailing winches have narrow composite jaws to ensure superior holding power on small-diameter line. The self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails.

Weight (kg)	11.7 kg
Weight (lb)	25.8 lb
Maximum line Ø (mm)	16 mm
Maximum line Ø (in)	5/8 in
Fasteners (mm)	M8 SH mm
Fasteners (in)	5/16 SH in
Fastener circle (mm)	204 mm
Fastener circle (in)	8 in
Minimum line Ø (mm)	8 mm
Minimum line Ø (in)	5/16 in
Height (mm)	253 mm
Height (in)	10 in
Number of fasteners	6
Configuration	Self-tailing
Speed	3
Drum Ø (mm)	120 mm
Drum Ø (in)	4 3/4 in
Base Ø (mm)	236 mm
Base Ø (in)	9 5/16 in
Line entry height (mm)	116 mm
Line entry height (in)	4 9/16 in
Gear ratio - 1	2.20
Gear ratio - 2	4.80
Gear ratio - 3	14.40
Power ratio - 1	9.20
Power ratio - 2	20.30
Power ratio - 3	61.00
