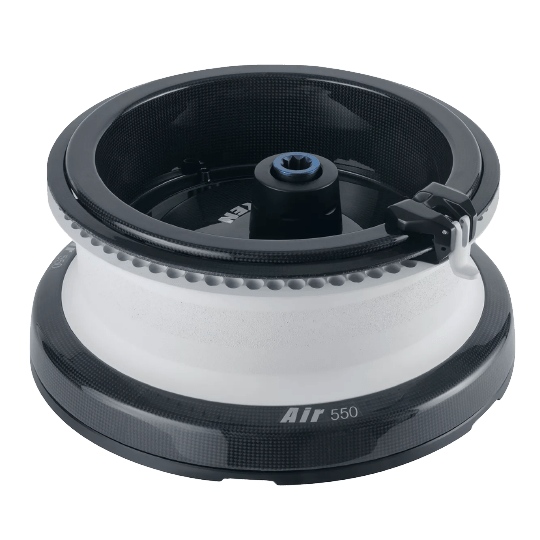

Name: Harken 550 Air Winch
Brand: Pacific Sailboat Supply
SKU: HRKN550AIRWINCH
Availability: OutOfStock

THIS IS A CUSTOM ITEM ORDER. PLEASE CONTACT US DIRECTLY FOR PRICING.

Harken 550 Air winches feature a set of interchangeable gearing kits that give skippers the flexibility to create a perfect blend of speed and power for each day’s weather and crew configuration. The winches, which feature a nearly empty middle to reduce weight, were designed for trimming sails on AC foiling cats, IMOCA 60s, AC75s, TP52s and similar Grand Prix boats. The hollow middle is a first for sailing winches, as are the changeable gear kits. All Harken Air winch models feature interchangeable first-speed and second-speed options. The wide-diameter drums allow fewer wraps, faster trimming, and faster easing. Standard and counter-rotating versions are available. The 550 model is designed for boats up to 24.4 m (80'). It features a high-performance ceramic coated white drum. It is designed for new builds and is mounted in a unique way: the base of the winch is molded into the deck by the boatbuilder.

Weight (kg)	12.4 kg
Weight (lb)	27.3 lb
Maximum line Ø (mm)	12 mm
Maximum line Ø (in)	1/2 in
Drum Ø (mm)	300 mm
Drum Ø (in)	11 13/16 in
Base Ø (mm)	380 mm
Base Ø (in)	14 15/16 in
Height (mm)	174 mm
Height (in)	6 7/8 in
Line entry height (mm)	61 mm
Line entry height (in)	2 7/16 in
Minimum line Ø (mm)	6 mm
Minimum line Ø (in)	1/4 in
Gear ratio - 1	1.30:1
Gear ratio - 2	10.58:1
Gear ratio - 3	47.98:1
Power ratio - 1	2.21:1
Power ratio - 2	17.92:1
Power ratio - 3	81.25:1
