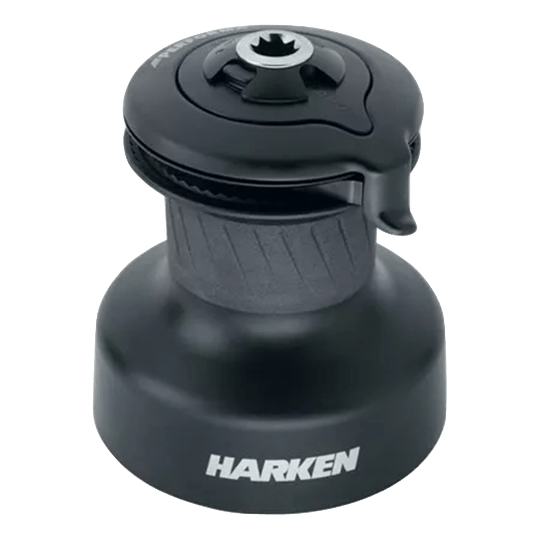

Harken 50 STP Performa Self-Tailing Three-Speed Winch
Harken 50 STP Performa Self-Tailing Three-Speed Winch
Part No. 50.3STP
Configuration Self-tailing
Speed 3
Maximum line Ø (mm) 14 mm
Maximum line Ø (in) 9/16 in
Power ratio - 1 4.62
Power ratio - 2 11.10
All Performa™ winches feature sandblasted drums optimized for halyard and sheeting applications using small-diameter, high-tech line. Self-tailing winches have narrow composite jaws to ensure superior holding power on small-diameter line. The self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails.
| Configuration | Self-tailing |
| Speed | 3 |
| Drum Ø (mm) | 110 mm |
| Drum Ø (in) | 4 5/16 in |
| Base Ø (mm) | 195 mm |
| Base Ø (in) | 7 11/16 in |
| Height (mm) | 212 mm |
| Height (in) | 8 5/16 in |
| Weight (kg) | 6.8 kg |
| Weight (lb) | 15.0 lb |
| Line entry height (mm) | 97 mm |
| Line entry height (in) | 3 13/16 in |
| Minimum line Ø (mm) | 8 mm |
| Minimum line Ø (in) | 5/16 in |
| Maximum line Ø (mm) | 14 mm |
| Maximum line Ø (in) | 9/16 in |
| Fastener circle (in) | 5 7/8 in |
| Fastener circle (mm) | 150 mm |
| Fasteners (mm) | M8 SH mm |
| Fasteners (in) | 5/16 SH in |
| Number of fasteners | 5 |
| Gear ratio - 1 | 1 |
| Gear ratio - 2 | 2.40 |
| Gear ratio - 3 | 10.90 |
| Power ratio - 1 | 4.62 |
| Power ratio - 2 | 11.10 |
| Power ratio - 3 | 50.40 |
