Name: Harken 3829 System A 22mm CB Battcar — 10 mm Stud
Brand: Pacific Sailboat Supply
Price: 228.95 USD
Availability: InStock

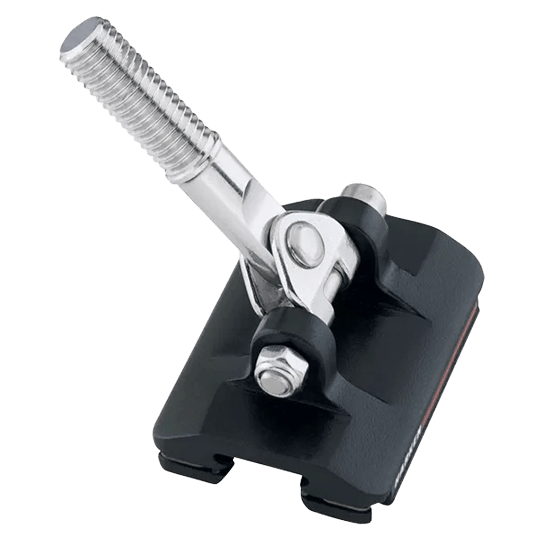

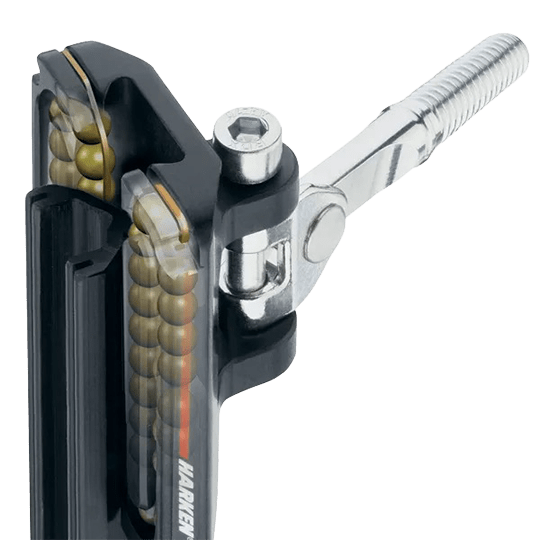

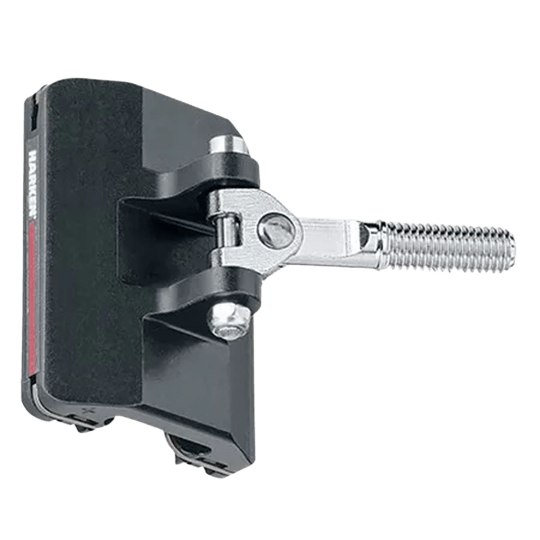

Harken 3829 System A 22mm CB Battcar — 10 mm Stud

Maximum working load (kg) 272 kg

Maximum working load (lb) 600 lb

Maximum sail area - monohull (m²) 56 m²

Maximum sail area - monohull (ft²) 600 ft²

Maximum sail area - multihull (m²) 46 m²

Maximum sail area - multihull (ft²) 500 ft²

The Harken 3829 22mm System A CB Battcar with 10 mm Stud is a high-performance solution designed to enhance mainsail handling for monohulls ranging from 37 to 50 feet (11.3 to 15.2 meters) and multihulls between 30 and 40 feet (9.1 to 12.2 meters). With a maximum sail area capacity of 600 ft² (56 m²) for monohulls and 500 ft² (46 m²) for multihulls, this battcar is ideal for sailors seeking efficient and reliable sail control.

Length (mm)	73 mm
Length (in)	2 7/8 in
Width (mm)	57 mm
Width (in)	2 1/4 in
Weight (g)	157 g
Weight (oz)	6 oz

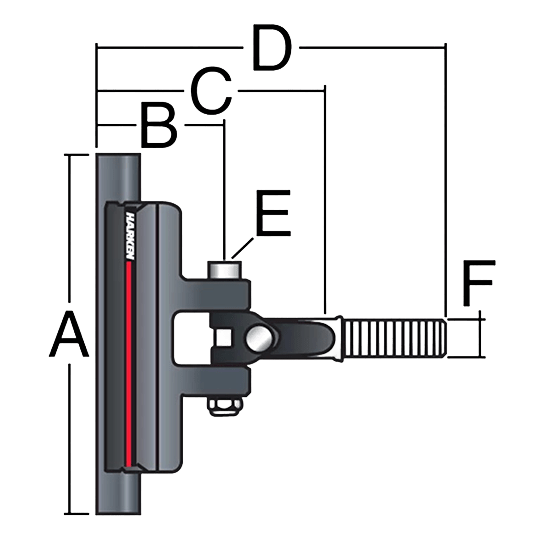

A (mm)	73 mm
A (in)	2 7/8 in
B (mm)	35 mm
B (in)	1 3/8 in
C (mm)	57 mm
C (in)	2 1/4 in
D (mm)	94 mm
D (in)	3 11/16 in
E (mm)	5 mm
E (in)	3/16 in
F (mm)	10 mm
F (in)	3/8 in
