Name: Harken 3828 22mm System A Slider Battcar — Intermediate
Brand: Pacific Sailboat Supply
SKU: 164272
Price: 109.95 USD
Availability: InStock

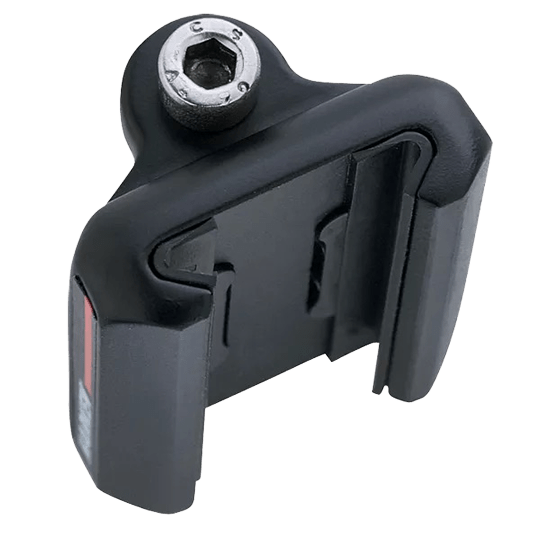

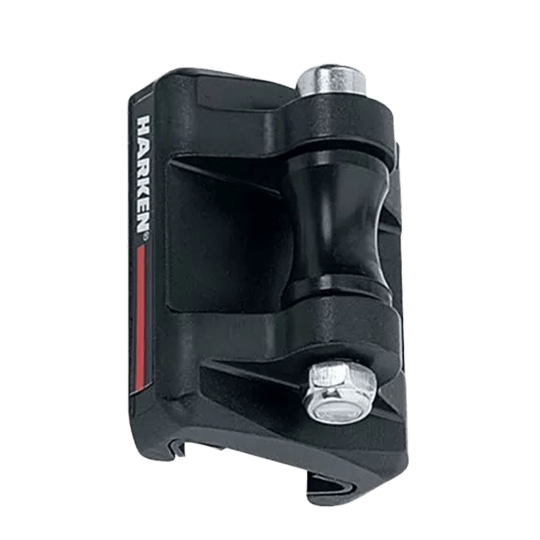

Harken 3828 22mm Slider Battcar — Intermediate

The Harken 3828 22mm Slider Battcar — Intermediate is a high-performance sail track solution designed for smooth, reliable mainsail handling on monohulls up to 50 feet and multihulls up to 40 feet. Engineered as part of Harken’s System A 22mm slider battcar range, this intermediate car features a low-friction plastic insert that enables the battcar to glide effortlessly along the track, reducing drag and easing sail adjustments under load. Crafted from hardcoat-anodized aluminum for superior corrosion resistance and durability, the 3828 is lightweight and compact—perfect for reducing stack height and maintaining sail shape in demanding conditions. Ideal for shorthanded crews and performance cruisers alike, the Harken 3828 is a reliable, cost-effective alternative to complex furling systems, making it a top choice for sailors seeking efficiency, strength, and simplicity in their mainsail management.

Maximum working load (kg) 159 kg

Maximum working load (lb) 350 lb

Maximum sail area - monohull (m²) 56 m²

Maximum sail area - monohull (ft²) 600 ft²

Maximum sail area - multihull (m²) 46 m²

Maximum sail area - multihull (ft²) 500 ft²

Length (mm)	44 mm
Length (in)	1 3/4 in
Width (mm)	35 mm
Width (in)	1 3/8 in
Weight (g)	45 g
Weight (oz)	1.6 oz

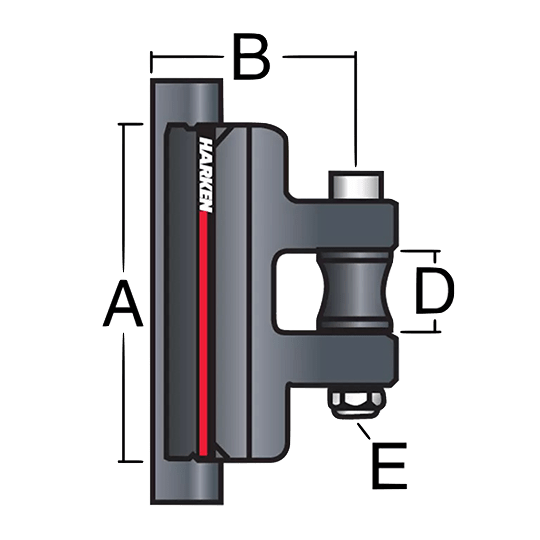

A (mm)	44 mm
A (in)	1 3/4 in
B (mm)	27 mm
B (in)	1 1/16 in
D (mm)	17 mm
D (in)	21/32 in
E (mm)	5 mm
E (in)	3/16 in
