Harken 3803 System A 22mm Slider Battcar — 40 mm Receptacle

Harken 3803 System A 22mm Slider Battcar — 40 mm Receptacle

The Harken 3803 22mm System A Slider Battcar with 40 mm Receptacle is engineered to enhance mainsail handling for monohulls between 37–50 ft (11.3–15.2 m) and multihulls from 30–40 ft (9.1–12.2 m), accommodating mainsail areas up to 600 ft² (56 m²) and 500 ft² (46 m²) respectively. As part of Harken's System A Slider Battcar series, this intermediate car facilitates smooth hoisting, reefing, and dousing of the mainsail, particularly beneficial for shorthanded crews.

Maximum working load (kg) 159 kg

Maximum working load (lb) 350 lb

Maximum sail area - monohull (m²) 56 m²

Maximum sail area - monohull (ft²) 600 ft²

Maximum sail area - multihull (m²) 46 m²

Maximum sail area - multihull (ft²) 500 ft²

Maximum batten width (mm) 41 mm

Maximum batten width (in) 1 5/8 in

Maximum batten Ø (mm) 16 mm

Maximum batten Ø (in) 5/8 in

Length (mm)	44 mm
Length (in)	1 3/4 in
Width (mm)	35 mm
Width (in)	1 3/8 in
Weight (g)	181 g
Weight (oz)	6.38 oz

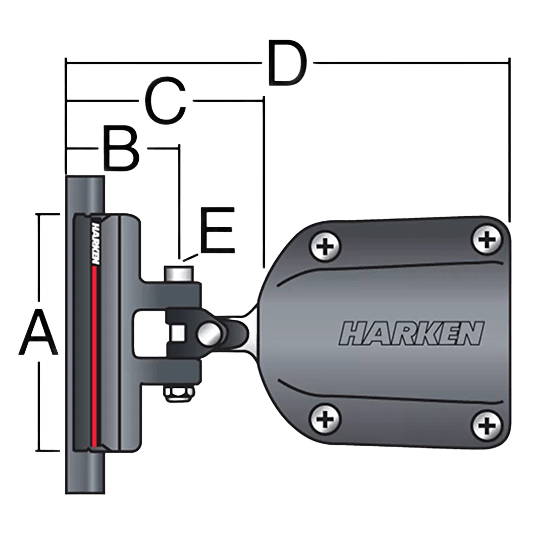

A (mm)	44 mm
A (in)	1 3/4 in
B (mm)	27 mm
B (in)	1 1/16 in
C (mm)	54 mm
C (in)	2 1/8 in
D (mm)	130 mm
D (in)	5 1/8 in
E (mm)	5 mm
E (in)	3/16 in
Batten shape	Flat/Round
