Harken 3258 125mm Double Black Magic Footblock
Harken 3258 125mm Double Black Magic Footblock
Use footblocks to redirect lines on the deck. Footblocks with lockoffs temporarily secure sheets. Either metric or imperial flathead fasteners may be used for mounting and are not exposed. Sideplates and sheaves Hard Lube-anodized for maximum UV protection and a smooth surface. Center cage keeps Torlon® roller bearings separated and parallel to reduce friction. Torlon is a registered trademark of Solvay Advanced Polymers L.L.C.
Sheave Ø (mm) | 125 mm |
Sheave Ø (in) | 4 15/16 in |
Length (mm) | 176 mm |
Length (in) | 6 15/16 in |
Weight (g) | 1711 g |
Weight (oz) | 60.35 oz |
Maximum line Ø (mm) | 19 mm |
Maximum line Ø (in) | 3/4 in |
Fasteners (mm) | 12 FH mm |
Fasteners (in) | 1/2 FH in |
Maximum working load (kg) | 3292 kg |
Maximum working load (lb) | 7260 lb |
Breaking load (kg) | 6585 kg |
Breaking load (lb) | 14520 lb |
Height (mm) | 71.5 mm |
Height (in) | 2 13/16 in |

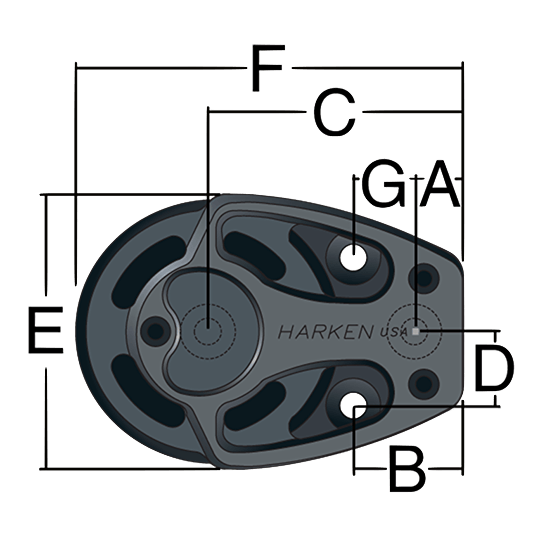

A (mm) | 17 mm |
A (in) | 21/32 in |
B (mm) | 45 mm |
B (in) | 1 25/32 in |
C (mm) | 113 mm |
C (in) | 4 7/16 in |
D (mm) | 34.5 mm |
D (in) | 1 11/32 in |
E (mm) | 127.5 mm |
E (in) | 5 1/32 in |
F (mm) | 176 mm |
F (in) | 6 29/32 in |
G (mm) | 28 mm |
G (in) | 1 3/32 in |
Number of fasteners | 4 |
Choose options
Harken 3258 125mm Double Black Magic Footblock
Sale price$1,649.95
Regular price$1,875.10
