Harken 3253 100mm Single Black Magic High-Load Teardrop Padeye Block
Harken 3253
Teardrop blocks are ideal as masthead leads and in other applications where limited articulation or direct attachment is desired. When attached to a compatible padeye, teardrop blocks will not hit the deck when lines are slack, but allow enough movement to ensure fairleads when jumping halyards. They are often used on permanent backstays of fractionally rigged boats where the backstay can be spliced directly to the head of the block.

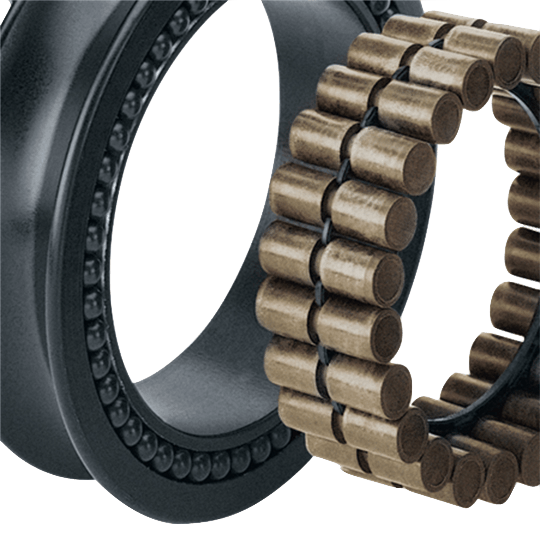

Sideplates and sheaves Hard Lube-anodized for maximum UV protection and a smooth surface. Center cage keeps Torlon® roller bearings separated and parallel to reduce friction.
Torlon is a registered trademark of Solvay Advanced Polymers L.L.C.
Sheave Ø (mm)100 mm
Sheave Ø (in)3 15/16 in
Length (mm)148 mm
Length (in)5 13/16 in
Weight (g)454 g
Weight (oz)16 oz
Clevis pin Ø (mm)12.7 mm
Clevis pin Ø (in)1/2 in
Maximum line Ø (mm)16 mm
Maximum line Ø (in)5/8 in
Maximum working load (kg)3402 kg
Maximum working load (lb)7500 lb
Breaking load (kg)6804 kg
Breaking load (lb)15000 lb
Choose options
Harken 3253 100mm Single Black Magic High-Load Teardrop Padeye Block
Sale price$714.95
Regular price$812.55
