Harken 3226 57mm Single Black Magic Low-Load Block

Sale price$197.95 Regular price$225.00

HARKEN 3226

Single Black Magic® AirBlocks® - 57mm  NEW!

The entire line of Black Magic® AirBlocks® has been redesigned with a sleek new look. Their unique, performance-packed engineering remains exactly the same.

Used on offshore boats, these strong, lightweight blocks feature high-load Torlon® roller bearings for a high strength-to-weight ratio and reduced wear. Rollers are housed in a center cage and stay parallel for low-friction efficiency. Sculpted hardcoat-anodized aluminum side plates protect sideload ball bearings. Dissimilar metals are isolated to minimize corrosion. Like all Black Magic® AirBlocks®, the three-way head swivels/locks in front/side positions. Blocks are easily disassembled with a single hex wrench.

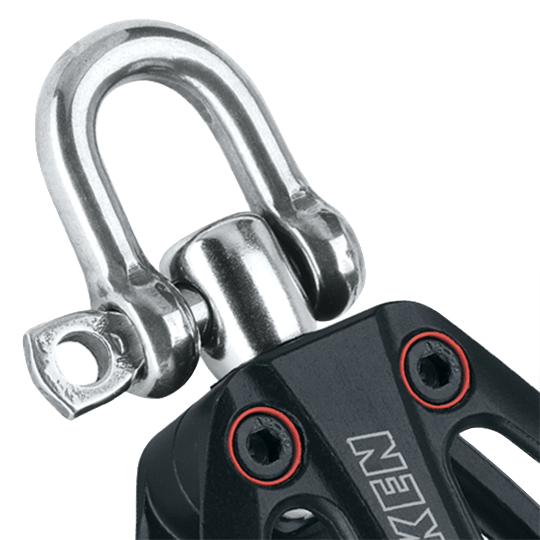

Standard blocks have 17-4 PH stainless head posts. Low-load blocks use Torlon® rollers and 316 stainless steel shackles.

Use for:
  • Sheets
  • Halyards
  • Running backstays
  • Control lines

Specifications:
  • Sheave Diameter - 57mm (2-1/4")
  • Max Line Diameter - 7/16" (12mm)


Mfg No. Description Length Shackle Pin
Diameter
Max Working
Load
Breaking
Load
Weight
3226 Single / swivel /
low-load
4-11/16"
(119mm)
1/4"
(6mm)
1655 Lbs
(750kg)
3310 Lbs
(1500kg)
5.44 oz.
(154g)
