Harken 3188 22mm Small CB Spinnaker Pole Car Slider With Ring
HARKEN 3188
Spinnaker Pole Car - Small Boat
No. 3188 22mm Ring-Type

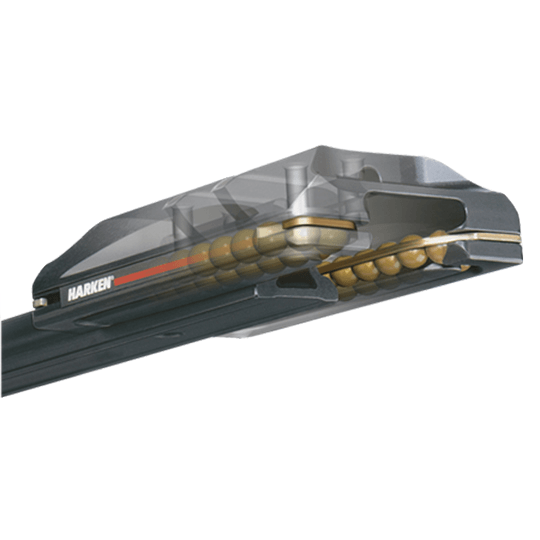

Harken spinnaker pole cars feature recirculating ball bearings to permit adjustment under any load. They roll freely on low-beam traveler track to allow crew to adjust for optimal sail shape. Machined aluminum Hardkote-anodized races permit Torlon® bearings to transition smoothly from active to return race for smooth trimming or easing. (Torlon® is a registered trademark of Solvay Advanced Polymers.)
Captive balls on Small Boat ring cars make cars easy to load and maintain. Stainless steel wire guides circulate bearings smoothly and keep the balls captive when the car is off the track.
Specifications:
Applications:
Spinnaker Pole Car - Small Boat
No. 3188 22mm Ring-Type
Harken spinnaker pole cars feature recirculating ball bearings to permit adjustment under any load. They roll freely on low-beam traveler track to allow crew to adjust for optimal sail shape. Machined aluminum Hardkote-anodized races permit Torlon® bearings to transition smoothly from active to return race for smooth trimming or easing. (Torlon® is a registered trademark of Solvay Advanced Polymers.)
Captive balls on Small Boat ring cars make cars easy to load and maintain. Stainless steel wire guides circulate bearings smoothly and keep the balls captive when the car is off the track.
- Tough, lightweight one-piece aluminum construction

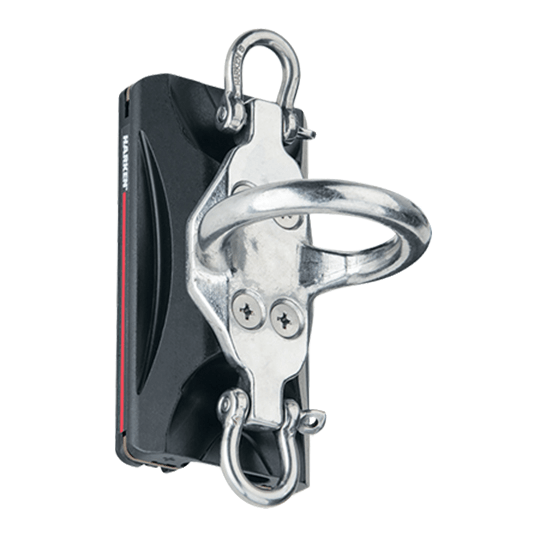

- Ring accepts piston pole ends for end-for-end jibing
- Fits low-beam track
Specifications:
- Max Spinnaker Area - 900 Ft2 (85M2)
- Length - 4-63/64" (126mm)
- Max Working Load - 1,125 Lbs (510kg)
- Track - Mfg #2720
- Pole End - piston type
- Weight - 12 oz. (340g)
Applications:
- Spinnaker poles
- Whisker poles
