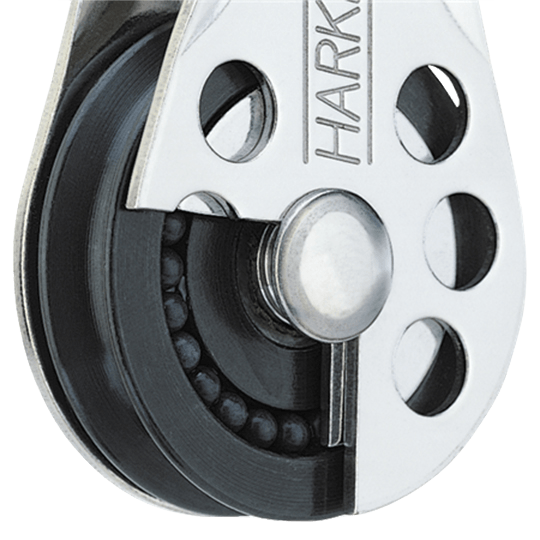

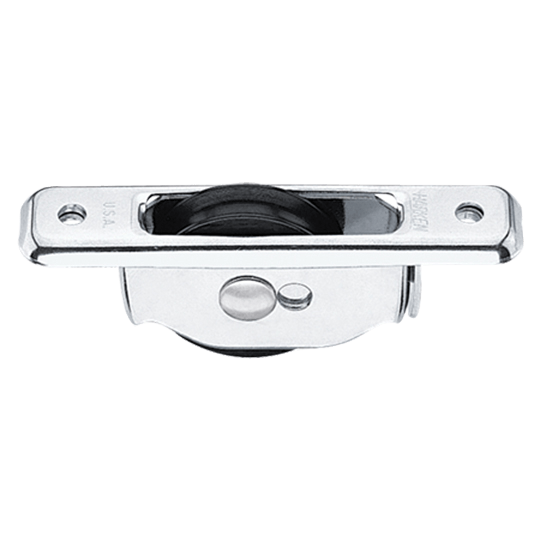

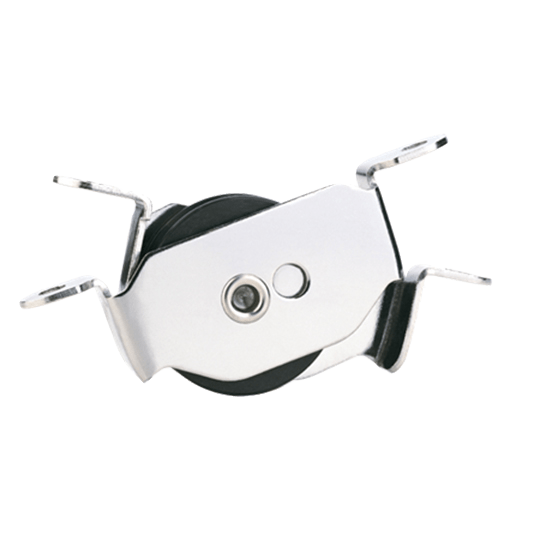

Harken 302 25mm 1" Single High-Strength Thru-Deck Exit Block
HARKEN 302
Single Line/Wire High Strength Thru-Deck Block
Lightweight, low-friction wire blocks carry wire halyards and high-strength control lines on boats of all sizes. High-load composite bearings carry axial loads. Hardkote-anodized PTFE-impregnated sheaves provide strength and corrosion resistance.
25mm (1.00") wire blocks use low-friction thrust washers. 38mm (1.50") and 51mm (2.00") wire blocks feature side-load balls between the sheave and the side plate to minimize friction from unfair leads.
Use for:
Single Line/Wire High Strength Thru-Deck Block
Lightweight, low-friction wire blocks carry wire halyards and high-strength control lines on boats of all sizes. High-load composite bearings carry axial loads. Hardkote-anodized PTFE-impregnated sheaves provide strength and corrosion resistance.
25mm (1.00") wire blocks use low-friction thrust washers. 38mm (1.50") and 51mm (2.00") wire blocks feature side-load balls between the sheave and the side plate to minimize friction from unfair leads.
Use for:
- Wire halyards
- Vangs
- Control lines
| Mfg No. | Sheave Diameter |
Max Wire Diameter |
Max Line Diameter |
Max Working Load |
Breaking Load |
Cutout Size | Fasteners | Weight |
| 302 | 1" (25mm) |
3/32" (2mm) |
5/32" (4mm) |
1,000 Lbs (454kg) |
2,000 Lbs (907kg) |
13/32" x 1-17/32" (11 x 39mm) |
#10 (5mm) RH | 1.0 oz. (28g) |
