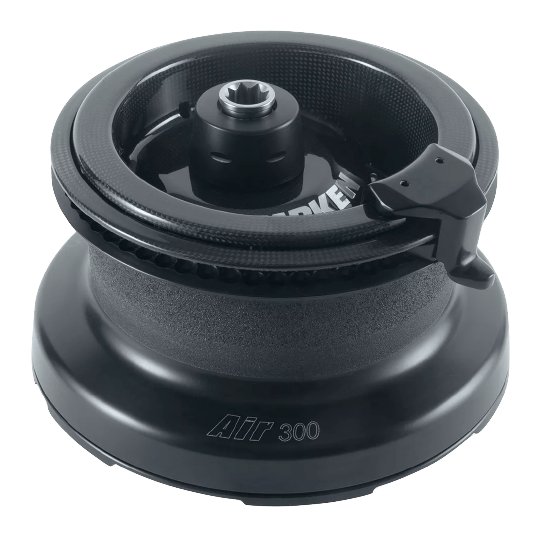

Harken 300 Air Winch

Sale price$0.00

THIS IS A CUSTOM ITEM ORDER. PLEASE CONTACT US DIRECTLY FOR PRICING.
Harken 300 Air winches feature a set of interchangeable gearing kits that give skippers the flexibility to create a perfect blend of speed and power for each day’s weather and crew configuration. The winches, which feature a nearly empty middle to reduce weight, were designed for trimming sails on AC foiling cats, IMOCA 60s, AC75s, TP52s and similar Grand Prix boats. The hollow middle is a first for sailing winches, as are the changeable gear kits. All Harken Air winch models feature interchangeable first-speed and second-speed options. The wide-diameter drums allow fewer wraps, faster trimming, and faster easing. Standard and counter-rotating versions are available. The 300 model is designed for boats up to 17 m (56'). It features an anodized aluminum drum. All models can be driven by pedestal or handle. The 300 can also be powered by electric or hydraulic motor.

Weight (kg) 7.7 kg
Weight (lb) 17.0 lb
Maximum line Ø (mm) 10 mm
Maximum line Ø (in) 3/8 in
Fastener circle (mm) 210 mm
Fastener circle (in) 8 9/32 in
Drum Ø (mm) 200 mm
Drum Ø (in) 7 7/8 in
Base Ø (mm) 271 mm
Base Ø (in) 10 21/32 in
Height (mm) 153 mm
Height (in) 6 in
Line entry height (mm) 57 mm
Line entry height (in) 2 1/4 in
Minimum line Ø (mm) 5 mm
Minimum line Ø (in) 3/16 in
Gear ratio - 1 1.34:1
Gear ratio - 2 6.40:1
Gear ratio - 3 25.42.1
Power ratio - 1 3.42:1
Power ratio - 2 16.27:1
Power ratio - 3 64.57:1
