Harken 2670 75mm 3" Single Swivel Carbo Airblock Ratchet DN Iceboat Block
HARKEN 2670
Single Carbo Ratchet Block - 75mm
Carbo Ratchets allow sailors to hand-hold loaded lines and offer balance between holding power and controlled easing.

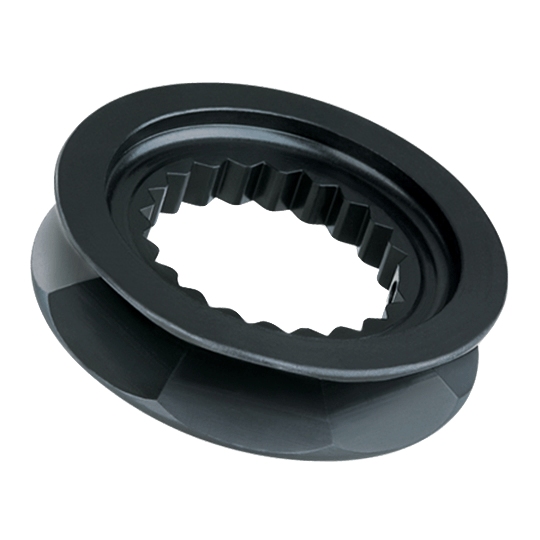

Nylon-resin side plates are densely packed with long-glass fibers for a compact block with a high strength-to-weight ratio. Machined aluminum sheaves are Hard Lube-anodized for strength and corrosion resistance. Eight facets hold line securely. Ball bearings, sheave and sideplates are UV-stabilized with carbon black for maximum protection.
75mm

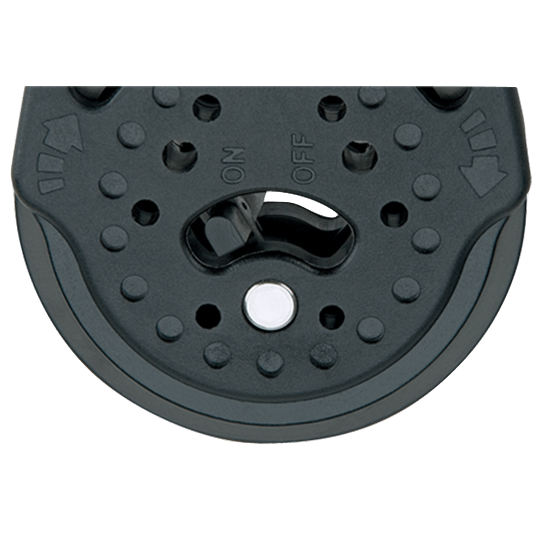

The 75mm switchable ratchets provide precise on/off control with accessible, easy-to-operate on/off switches on both sides of the block.
For the ultimate system, mount a switchable ratchet in the cockpit and a boom-mounted Ratchamatic® directly above to allow double holding power in heavy air and to ensure a free-running mainsheet in light air. The 75mm holding power is up to 15:1. (Holding Power with 180° wrap at 50 Lbs.)
Use for:
Single Carbo Ratchet Block - 75mm
Carbo Ratchets allow sailors to hand-hold loaded lines and offer balance between holding power and controlled easing.
Nylon-resin side plates are densely packed with long-glass fibers for a compact block with a high strength-to-weight ratio. Machined aluminum sheaves are Hard Lube-anodized for strength and corrosion resistance. Eight facets hold line securely. Ball bearings, sheave and sideplates are UV-stabilized with carbon black for maximum protection.
75mm
The 75mm switchable ratchets provide precise on/off control with accessible, easy-to-operate on/off switches on both sides of the block.
For the ultimate system, mount a switchable ratchet in the cockpit and a boom-mounted Ratchamatic® directly above to allow double holding power in heavy air and to ensure a free-running mainsheet in light air. The 75mm holding power is up to 15:1. (Holding Power with 180° wrap at 50 Lbs.)
Use for:
- Main / jib / spinnaker sheets
- Mainsheet fine-tune
- Traveler controls
- Genoa leads
- Foreguys
- Vangs
| Mfg No. | Sheave Diameter |
Length | Shackle Pin Dia. |
Max Line Diameter |
MWL1 | Breaking Load |
Weight2 |
| 2670 |
2-15/16" (75mm) |
5-3/8" (137mm) |
1/4" (6mm) |
7/16" (12mm) |
750 Lbs (341kg) |
3,000 Lbs (1,361kg) |
8.0 oz (227g) |
