Harken 2627 57mm 2.25" Single Carbo Ratchamatic Block With Cam Cleat

Sale price$214.95 Regular price$243.90

HARKEN 2627

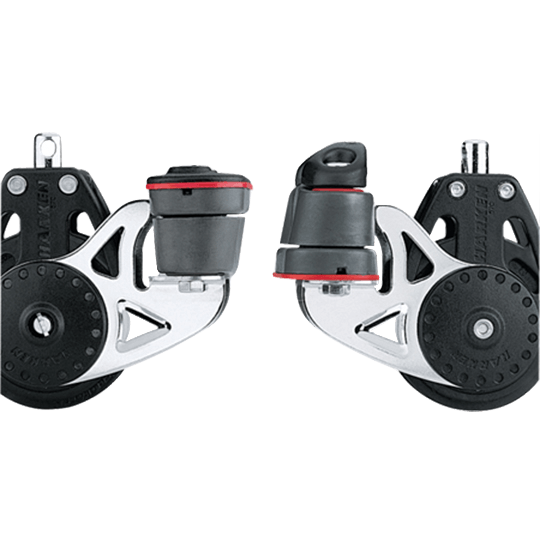

Single Carbo Ratchamatic® Block with Cam Cleat - 57mm

The Carbo Ratchmatic® is a load-sensing ratchet block that rolls freely in both directions under low loads and automatically engages the ratchet as loads increase. Shifting between ratchet and light-air modes is seamless. Unloaded main and jib sheets run out freely during mark roundings, and asymmetrical spinnakers free instantly during jibes.

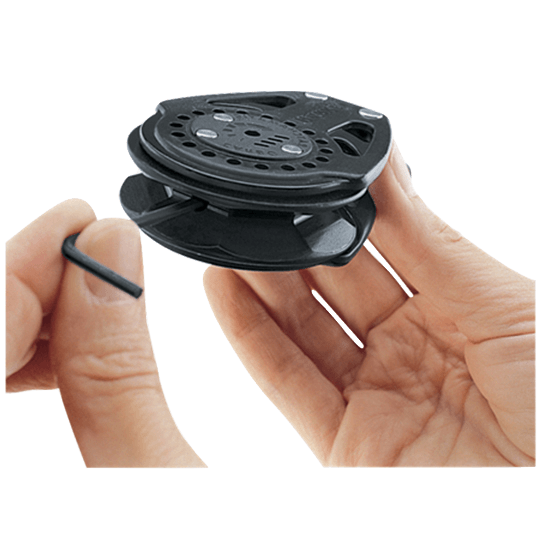

Ratchet engagement may be adjusted to a higher or lower load, according to strength and sailing style. The holding power of the 57mm is as high as 10:1.

For the ultimate system, mount a Ratchamatic® on the boom above a cockpit-mounted switchable ratchet to double holding power in heavy air and to ensure a free-running mainsheet in light air.


Use for:
  • Main / jib sheets
  • Asymmetric spinnakers


Mfg No. Sheave
Diameter
Length Shackle
Pin Dia.
Max Line
Diameter
Max Working
Load
Breaking
Load
Weight
2627 2-1/4"
(57mm)
4-15/16"
(125mm)
3/16"
(5mm)
3/8"
(10mm)
300 Lbs
(136kg)
750 Lbs
(340kg)
9.4 oz.
(266g)
