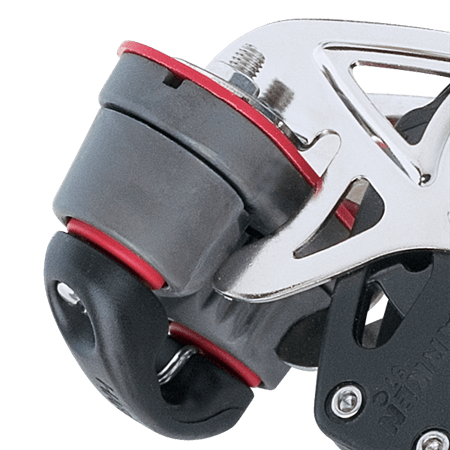

Harken 2616 57mm Carbo Air Block With Cam Cleat And Becket
HARKEN 2616
Single Carbo AirBlock® with Cam Cleat and Becket - 57mm
Low-friction Carbo AirBlocks® are lightweight, strong, reliable, and affordable.
Carbo AirBlocks® are 60% stronger and 30% lighter than Harken's Classic blocks. The Nylon-resin side plates are densely packed with long-glass fibers for a compact block with a high strength-to-weight ratio. Ball bearings, sheave and side plates are UV-stabilized with carbon-black additive for maximum protection.
Blocks feature Cam-Lock or U-Lock locking systems to lock the shackle in front or side positions, or swivel to keep line from twisting. The high-load 57mm Carbo has a broad working range. Use for main and jib sheets on centerboard and keelboats like Lightnings, Dragons, Solings, J/24's, and for mainsheet systems on catamarans.
Like all AirBlocks®, the three-way head swivels/locks in front/side positions. Blocks are easily disassembled with a single Allen® wrench.
Use for:
Specifications:
Single Carbo AirBlock® with Cam Cleat and Becket - 57mm
Low-friction Carbo AirBlocks® are lightweight, strong, reliable, and affordable.
Carbo AirBlocks® are 60% stronger and 30% lighter than Harken's Classic blocks. The Nylon-resin side plates are densely packed with long-glass fibers for a compact block with a high strength-to-weight ratio. Ball bearings, sheave and side plates are UV-stabilized with carbon-black additive for maximum protection.
Blocks feature Cam-Lock or U-Lock locking systems to lock the shackle in front or side positions, or swivel to keep line from twisting. The high-load 57mm Carbo has a broad working range. Use for main and jib sheets on centerboard and keelboats like Lightnings, Dragons, Solings, J/24's, and for mainsheet systems on catamarans.
Like all AirBlocks®, the three-way head swivels/locks in front/side positions. Blocks are easily disassembled with a single Allen® wrench.
Use for:
- Main/jib sheets
- Mainsheet fine-tune
- Control lines
- Vangs
- Cunninghams
- Outhauls
Specifications:
- Sheave Diameter - 57mm (2-1/4")
- Max Line Diameter - 7/16" (10mm)
Mfg No. | Description | Length | Shackle Pin Diameter |
Max Working Load |
Breaking Load |
Weight w/ Shackle |
2616* |
Single / swivel / 150 "Cam-Matic" / becket |
5-3/16" (132mm) |
3/16" (5mm) |
600 Lbs (272kg) |
1,500 Lbs (680kg) |
15.6 oz. (442g) |
Choose options
Harken 2616 57mm Carbo Air Block With Cam Cleat And Becket
Sale price$157.95
Regular price$179.55
