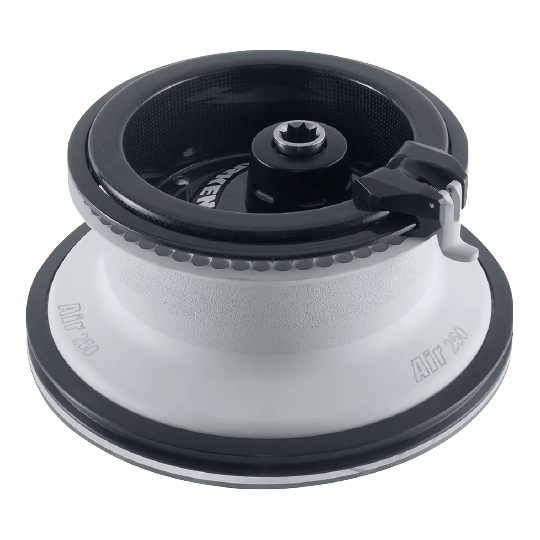

Name: Harken 250 Air Winch
Brand: Pacific Sailboat Supply
SKU: HRK250AIRWINCH
Availability: OutOfStock

THIS IS A CUSTOM ITEM ORDER. PLEASE CONTACT US DIRECTLY FOR PRICING.

Harken 250 Air winches feature a set of interchangeable gearing kits that give skippers the flexibility to create a perfect blend of speed and power for each day’s weather and crew configuration. The winches, which feature a nearly empty middle to reduce weight, were designed for trimming sails on AC foiling cats, IMOCA 60s, AC75s, TP52s and similar Grand Prix boats. The hollow middle is a first for sailing winches, as are the changeable gear kits. All Harken Air winch models feature interchangeable first-speed and second-speed options. The wide-diameter drums allow fewer wraps, faster trimming, and faster easing. Standard and counter-rotating versions are available. The 250 model is designed for boats up to 17 m (56'). It features a high-performance ceramic coated white drum. It is designed for new builds and is mounted in a unique way: the base of the winch is molded into the deck by the boatbuilder.

Weight (kg)	7.3 kg
Weight (lb)	16.1 lb
Maximum line Ø (mm)	10 mm
Maximum line Ø (in)	3/8 in
Drum Ø (mm)	200 mm
Drum Ø (in)	7 7/8 in
Base Ø (mm)	271 mm
Base Ø (in)	10 21/32 in
Height (mm)	146 mm
Height (in)	5 3/4 in
Line entry height (mm)	50 mm
Line entry height (in)	1 15/16 in
Minimum line Ø (mm)	5 mm
Minimum line Ø (in)	3/16 in
Gear ratio - 1	1.34:1
Gear ratio - 2	6.40:1
Gear ratio - 3	25.42.1
Power ratio - 1	3.42:1
Power ratio - 2	16.27:1
Power ratio - 3	64.57:1
