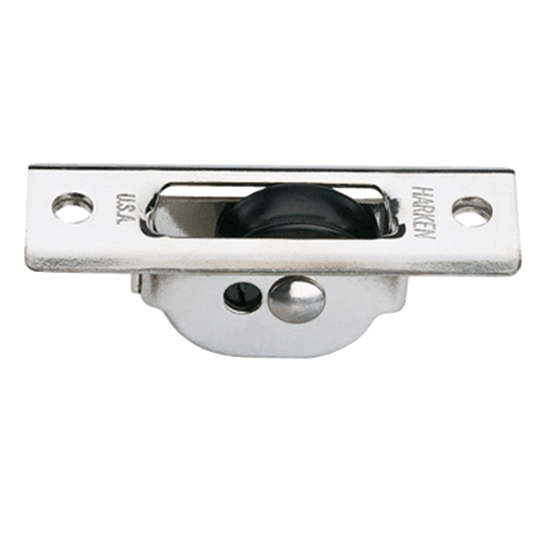

Harken 242 22mm Single Micro Thru-Deck Exit Block With Stainless Steel Cover

Sale price$34.95 Regular price$39.00

HARKEN 242

Micro Thru-Deck Block

Low-friction Micro blocks are compact and lightweight. They are ideal for sailboards, smaller dinghies, and lightly loaded control lines on boats of all sizes.

Micro block sheaves run exclusively on ball bearing systems for fast trim and release under any load. Delrin® ball bearings and side plates are UV-stabilized with carbon-black additive for maximum protection. Stainless steel side plates add strength. (Delrin® is a registered trademark of E. I. du Pont de Nemours and Company or its affiliates.)

Specifications:
  • Sheave Diameter - 7/8" (22mm)
  • Max Line Diameter - 1/4" (6mm)
  • Max Working Load - 200 Lbs (91kg)
  • Breaking Load - 1,200 Lbs (544kg)
  • Fasteners - #10 (5mm) RH

Use for:
  • Cunninghams/outhauls
  • Vangs
  • Traveler controls
  • Barber haulers
  • Lead car return tackles


Mfg No. Length Cutout Size Weight
242 2-5/8"
(67mm)
5/8" x 1-9/16"
(16 x 40mm)
1.0 oz.
(28g)
