Harken 2159 40mm Single Carbo Ratchamatic Airblock "T2" Soft-Attach Block
HARKEN 2159

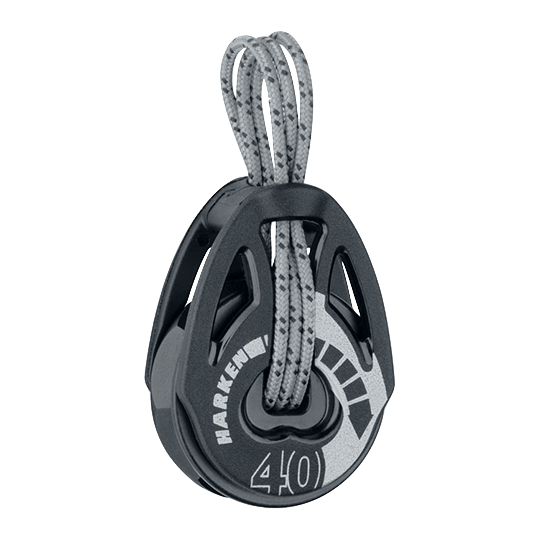

Single Carbo "T2" Soft-Attach Ratchamatic Block - 40mm
The patent-pending T2 Ratchamatic is Harken's newest block to feature the T2 line's styling and soft-attachment system.
The weight of this high-strength block is only a few ounces. This is thanks to composite fiber-reinforced side plates, hardcoat-anodized aluminum sheave, a lightweight soft-attach, and a minimum of moving parts in the ratcheting mechanism. All T2 blocks are lashed or spliced through the load-bearing center of the block, decreasing the loads on the side plates and acting as a safety backup for the system. Lashing allows ratchet adjustment close to the deck. Lashing or splicing provides a variety of options for securing the block at exactly the right height to maintain a fair lead.
Pressure on the line engages the ratchet mechanism, which switches seamlessly from free-running to ratchet mode. Unloaded main and jib sheets run out freely during mark roundings, and asymmetrical spinnaker sheets free instantly during jibes. T2 Ratchamatic blocks are clearly labeled with high-contrast directional markers for correct reeving and trimming direction.
A length of Spectra® line with a polyester cover is included. (Spectra is a registered trademark of Honeywell International, Inc.)
Use for:
Single Carbo "T2" Soft-Attach Ratchamatic Block - 40mm
The patent-pending T2 Ratchamatic is Harken's newest block to feature the T2 line's styling and soft-attachment system.
The weight of this high-strength block is only a few ounces. This is thanks to composite fiber-reinforced side plates, hardcoat-anodized aluminum sheave, a lightweight soft-attach, and a minimum of moving parts in the ratcheting mechanism. All T2 blocks are lashed or spliced through the load-bearing center of the block, decreasing the loads on the side plates and acting as a safety backup for the system. Lashing allows ratchet adjustment close to the deck. Lashing or splicing provides a variety of options for securing the block at exactly the right height to maintain a fair lead.
Pressure on the line engages the ratchet mechanism, which switches seamlessly from free-running to ratchet mode. Unloaded main and jib sheets run out freely during mark roundings, and asymmetrical spinnaker sheets free instantly during jibes. T2 Ratchamatic blocks are clearly labeled with high-contrast directional markers for correct reeving and trimming direction.
A length of Spectra® line with a polyester cover is included. (Spectra is a registered trademark of Honeywell International, Inc.)
Use for:
- Mainsheet and spinnaker systems on beach cats, dinghies, and sport boats
| Mfg No. | Description | Sheave Diameter |
Length | Max Line Diameter |
Max Working Load |
Breaking Load |
Holding Power w/ 180° wrap 50 Lb (23kg) |
Weight |
| 2159 | T2 Single | 1-9/16" (40mm) |
2-1/4" (57mm) |
3/8" (10mm) |
300 Lbs (136kg) |
1000 Lbs (454kg) |
10:1 | 0.9 oz. (25g) |
