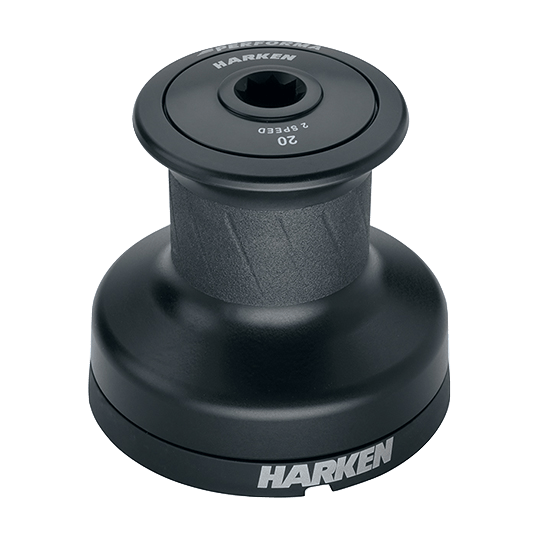

Harken 20 PTP Performa Plain-Top Aluminum Two-Speed Winch
HARKEN 20 PTP
Performa™ Winches
Plain-Top Aluminum
The Performa design combines the efficiency of Harken Radial® winches with the sandblasted grip of its carbon fiber racing winch for a powerful hybrid. Performa winches transfer high loads to the winch with fewer wraps, allowing crew to trim and ease sails quickly and repeatedly as wind strength and directions change.
All Performa™ winches feature sandblasted drums optimized for halyard and sheeting applications using small-diameter, high-tech line. Self-tailing winches have narrow composite jaws to ensure superior holding power on small-diameter line. The self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails.
Features:
Roller Bearings
Snap-fit design keeps bearings captive in a high-strength Delrin® cage when drum is removed for maintenance. Composite roller bearings don't require lubrication. (Delrin® is a registered trademark of E. I. du Pont de Nemours and Company or its affiliates.)
Gripping Surface
Performa™ winches feature sandblasted drims optimized for halyard and sheeting applications using high-tech line.
Specifications:
Model 20.2PTP - Two Speed
Fasteners required for the above winch sizes:
Note: Available via Special Order.
Performa™ Winches
Plain-Top Aluminum
The Performa design combines the efficiency of Harken Radial® winches with the sandblasted grip of its carbon fiber racing winch for a powerful hybrid. Performa winches transfer high loads to the winch with fewer wraps, allowing crew to trim and ease sails quickly and repeatedly as wind strength and directions change.
All Performa™ winches feature sandblasted drums optimized for halyard and sheeting applications using small-diameter, high-tech line. Self-tailing winches have narrow composite jaws to ensure superior holding power on small-diameter line. The self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails.
Features:
Roller Bearings
Snap-fit design keeps bearings captive in a high-strength Delrin® cage when drum is removed for maintenance. Composite roller bearings don't require lubrication. (Delrin® is a registered trademark of E. I. du Pont de Nemours and Company or its affiliates.)
Gripping Surface
Performa™ winches feature sandblasted drims optimized for halyard and sheeting applications using high-tech line.
Specifications:
Model 20.2PTP - Two Speed
- Gear Ratio 1st Speed - 1:1
- Gear Ratio 2nd Speed - 2.76:1
- Power Ratio 1st Speed - 6.95:1
- Power Ratio 2nd Speed - 19.20:1
Fasteners required for the above winch sizes:
- 5 x 1/4" (5 x 6mm) SH or HH
Note: Available via Special Order.
| Mfg No. | Drum Diameter (D) |
Base Diameter (B) |
Height (H) | Weight | Line Entry Height (LE) |
Fastener Circle |
| 20.2PTP | 2-7/8" (73mm) |
5-3/8" (137mm) |
5-1/16" (128mm) |
4.4 Lbs (2.0 kg) |
2-3/8" (61mm) |
4-3/8" (110mm) |
