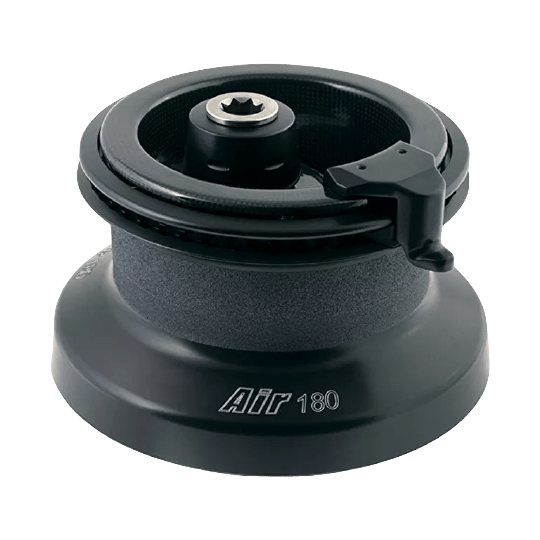

Harken 180 Air Winch
THIS IS A CUSTOM ITEM ORDER. PLEASE CONTACT US DIRECTLY FOR PRICING.
Harken 180 Air Winch
Features a set of interchangeable gearing kits that give skippers the flexibility to create a perfect blend of speed and power for each day’s weather and crew configuration. The winches, which feature a nearly empty middle to reduce weight, were designed for trimming sails on AC foiling cats, IMOCA 60s, AC75s, TP52s and similar Grand Prix boats. The hollow middle is a first for sailing winches, as are the changeable gear kits. All Harken Air winch models feature interchangeable first-speed and second-speed options. The wide-diameter drums allow fewer wraps, faster trimming, and faster easing. Standard and counter-rotating versions are available. The 250 model is designed for boats up to 17 m (56'). It features a high-performance ceramic coated white drum. It is designed for new builds and is mounted in a unique way: the base of the winch is molded into the deck by the boatbuilder.
| Weight (kg) | 6.4 kg |
| Weight (lb) | 14.1 lb |
| Maximum line Ø (mm) | 10 mm |
| Maximum line Ø (in) | 3/8 in |
| Drum Ø (mm) | 175 mm |
| Drum Ø (in) | 6 7/8 in |
| Base Ø (mm) | 229 mm |
| Base Ø (in) | 9 1/32 in |
| Height (mm) | 142 mm |
| Height (in) | 5 5/8 in |
| Line entry height (mm) | 50 mm |
| Line entry height (in) | 1 15/16 in |
| Minimum line Ø (mm) | 5 mm |
| Minimum line Ø (in) | 3/16 in |
| Gear ratio - 1 | 1.38:1 |
| Gear ratio - 2 | 6.51:1 |
| Gear ratio - 3 | 17.24:1 |
| Power ratio - 1 | 4.01:1 |
| Power ratio - 2 | 18.89:1 |
| Power ratio - 3 | 50.04:1 |
