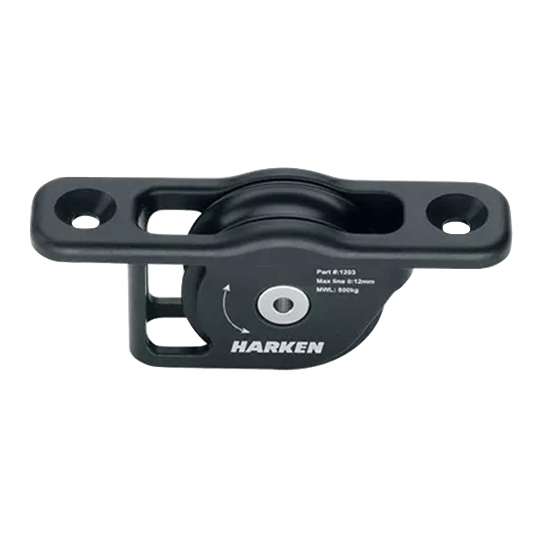

Harken 1203 50mm Protexit Single Exit Block
Harken 1203 50mm Protexit Single Exit Block
Part No. 1203
Maximum line Ø (mm) 12 mm
Maximum line Ø (in) 1/2 in
Maximum working load (kg) 800 kg
Maximum working load (lb) 1760 lb
Sheave Ø (mm) 50 mm
Sheave Ø (in) 1 15/16 in
When you race HARD, and you rip through as many hoists and douses as we do sailing W-L legs all the time, you should expect to start wearing through the sideplates of your halyard exit block right? Wrong! Thanks to Harken Protexit™ blocks, wear from side angle loading is not inevitable. Protexit’s all-aluminum, wear-resistant housing carefully ushers line in and out no matter the angle. There’s more: Protexit blocks offer higher working loads than any small boat exit blocks we’ve ever made. Protexit aluminum sheaves rotate on sleeve bearings with Delrin® sideload balls so they don’t deform in extreme conditions, while reducing wear on the halyard, too. Delrin is a registered trademark of E. I. du Pont de Nemours and Company or its affiliates.
Weight (oz) | 4.5 oz |
Length (in) | 4 5/8 in |
Length (mm) | 117 mm |
Weight (g) | 128 g |
Maximum line Ø (mm) | 12 mm |
Maximum line Ø (in) | 1/2 in |
Fastener spacing (mm) | 90 mm |
Fasteners (mm) | 6 FH mm |
Fasteners (in) | 1/4 FH in |
Maximum working load (kg) | 800 kg |
Maximum working load (lb) | 1760 lb |
Breaking load (kg) | 1600 kg |
Breaking load (lb) | 3528 lb |
Sheave Ø (mm) | 50 mm |
Sheave Ø (in) | 1 15/16 in |
A (mm) | 23.3 mm |
B (mm) | 71.5 mm |
