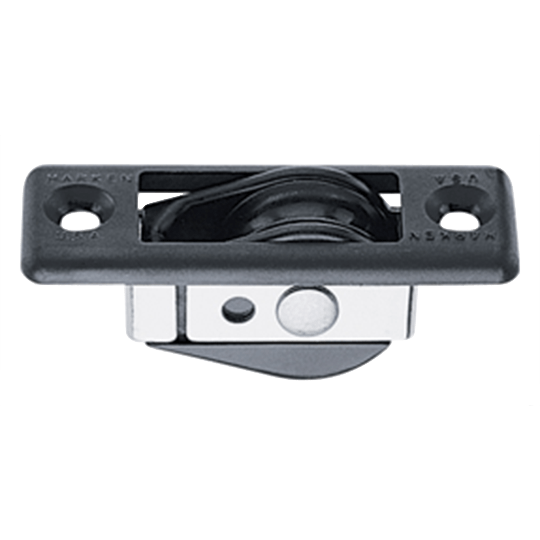

Harken 088 29mm Single Small Boat Classic Bullet Thru-Deck Exit Block
HARKEN 088
Bullet Thru-Deck Block
Low-friction Bullet blocks lead control lines aft. They are compact and lightweight, with fast trim and release under high or low loads. Free-rolling Delrin® ball bearings, sheave and side plates are UV-stabilized with carbon-black additive for maximum protection. (Delrin® is a registered trademark of E. I. du Pont de Nemours and Company or its affiliates.)
Use for:
- Outhauls
- Vangs
- Barber haulers
- Cunninghams
- Traveler controls
Length (in) | 3 in |
Sheave Ø (mm) | 29 mm |
Sheave Ø (in) | 1 1/8 in |
Length (mm) | 76 mm |
Weight (g) | 35 g |
Weight (oz) | 1.25 oz |
Maximum line Ø (mm) | 8 mm |
Maximum line Ø (in) | 5/16 in |
Fasteners (mm) | 5 FH mm |
Fasteners (in) | #10 FH in |
Mounting hole spacing (mm) | 57 mm |
Mounting hole spacing (in) | 2 1/4 in |
Cutout (mm) | 19 x 44 mm |
Cutout (in) | 3/4 x 1 3/4 in |
Maximum working load (kg) | 136 kg |
Maximum working load (lb) | 300 lb |
Breaking load (kg) | 907 kg |
Breaking load (lb) | 2000 lb |
Choose options
Harken 088 29mm Single Small Boat Classic Bullet Thru-Deck Exit Block
Sale price$28.95
Regular price$32.95
