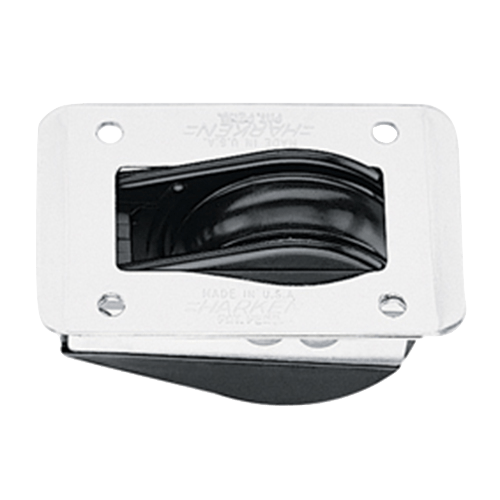

Harken 046 1.75" Single Dinghy Thru-Deck Exit Block
HARKEN 046
Dinghy Thru-Deck Block
Dinghy Thru-Deck Blocks are compact and lightweight, with fast trim and release under high or low loads. The dinghy block is perfect for dinghies, scows, beach cats and iceboats, as well as small offshore racers and cruisers.
The free-rolling Delrin® ball bearings, sheave and side plates are UV-stabilized with carbon-black additive for maximum protection. (Delrin® is a registered trademark of E. I. du Pont de Nemours and Company or its affiliates.)
Use for:
Dinghy Thru-Deck Block
Dinghy Thru-Deck Blocks are compact and lightweight, with fast trim and release under high or low loads. The dinghy block is perfect for dinghies, scows, beach cats and iceboats, as well as small offshore racers and cruisers.
The free-rolling Delrin® ball bearings, sheave and side plates are UV-stabilized with carbon-black additive for maximum protection. (Delrin® is a registered trademark of E. I. du Pont de Nemours and Company or its affiliates.)
Use for:
- Outhauls
- Vangs
- Barberhaulers
- Spinnaker sheets
| Sheave Ø (mm) | 44 mm |
| Sheave Ø (in) | 1 3/4 in |
| Length (mm) | 76 mm |
| Length (in) | 3 in |
| Weight (g) | 113 g |
| Weight (oz) | 4 oz |
| Maximum line Ø (mm) | 10 mm |
| Maximum line Ø (in) | 3/8 in |
| Fasteners (mm) | 4 RH mm |
| Fasteners (in) | #8 RH in |
| Maximum working load (kg) | 159 kg |
| Maximum working load (lb) | 350 lb |
| Breaking load (lb) | 2000 lb |
| Breaking load (kg) | 907 kg |
| Cutout (mm) | 27 x 68 mm |
| Cutout (in) | 1 1/16 x 2 1/16 in |
