Name: Harken 727 2.25" High-Load Sheave Replacement Block
Brand: Pacific Sailboat Supply
SKU: 103410
Price: 158.95 USD
Availability: InStock

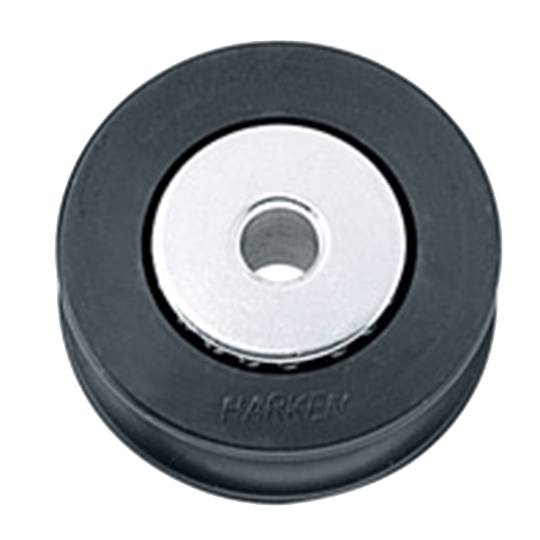

HARKEN

High-Load Sheaves

High-load sheaves are offered as replacement parts or for use in special applications. Their bearing system combines side-load-carrying balls with a PTFE composite bushing to carry radial loads.

While not as free-rolling as the standard Harken ball/roller bearing system, this compact bearing system is extremely durable and perfect for carrying high loads in a restricted diameter. Installation requires clamping or securing inner race.

Use for:

Masts
Booms
Deck organizers
Thru-transom running backstays

Mfg No.	Sheave Diameter	Width	Max Line Diameter	Max Wire Diameter	Center Pin Diameter	MWL¹	BL²
727	2-1/4" (57mm)	7/8" (22mm)	1/2" (12mm)	5/16" (8mm)	3/8" (10mm)	4950 Lbs (2245kg)	9000 Lbs (4491kg)
