Harken 688 Small Diamond Stainless Steel Padeye
HARKEN
Small Diamond Padeye - Stainless Steel
Padeyes are great for mounting blocks and are also used as attachment points for staysails, reefing blocks, and hundreds of other items.
The diamond-shaped padeye 688 is made from type 316 stainless steel.
Small Diamond Padeye - Stainless Steel
Padeyes are great for mounting blocks and are also used as attachment points for staysails, reefing blocks, and hundreds of other items.
The diamond-shaped padeye 688 is made from type 316 stainless steel.
- For maximum strength, always align padeye bails to the load

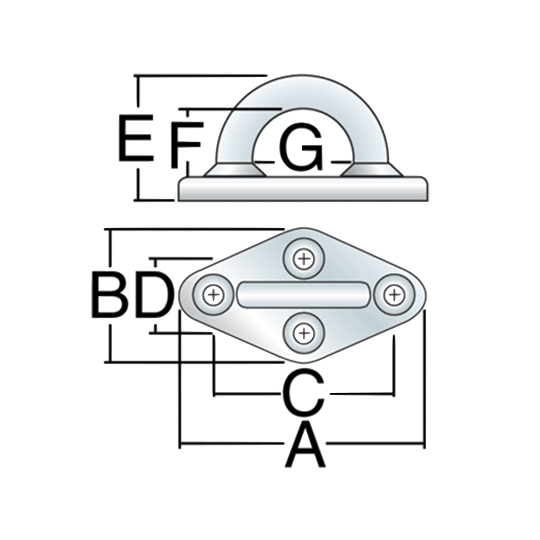

| Mfg No. | Description | A | B | C | D | E | F | G | Weight |
| 688 | Small Diamond |
3-1/8" (79mm) |
2" (51mm) |
2-3/8" (60mm) |
1-1/4" (32mm) |
1-3/16" (30mm) |
9/16" (14mm) |
7/8" (22mm) |
4.75 oz. (135g) |

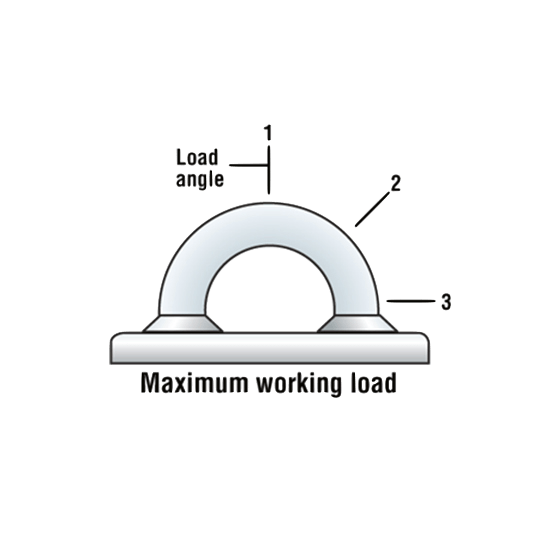

| Mfg No. | MWL 1 | MWL 2 | MWL 3 | BL 1 | BL 2 | BL 3 | Fasteners |
| 688 |
3800 Lbs (1770kg) |
5000 Lbs (2270kg) |
4300 Lbs (1950kg) |
7800 Lbs (3540kg) |
10,000 Lbs (4535kg) |
8600 Lbs (3900kg) |
1/4" FH (6mm) |
Harken 688 Small Diamond Stainless Steel Padeye
Sale price$41.95
Regular price$47.50
