Harken 437 16mm Micro Flip-Flop Block
HARKEN
Flip-Flop Block - 57mm

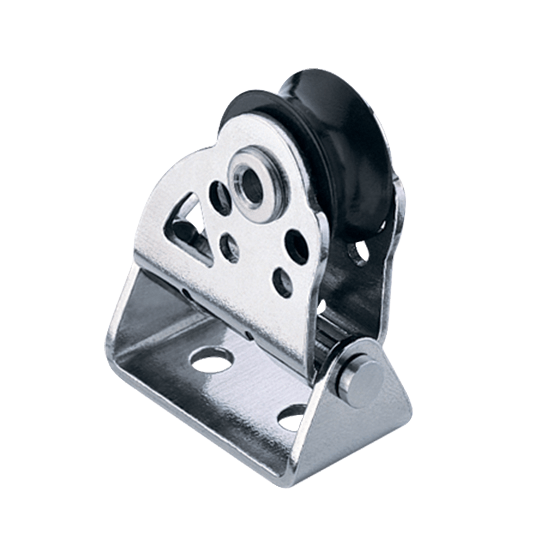

Small Boat Flip-Flop blocks pivot around the line axis to keep line close to the deck. Hinged construction allows for various lead angles.
Lightweight, machined 6061-T6 aluminum cheeks pivot on fiber-reinforced plastic chocks. The sheave runs exclusively on a ball bearing system for fast trim and release under any load. Ball bearings, sheave, and side plates are UV-stabilized with carbon black for maximum protection.
Ratchamatic® versions roll freely in both directions under low loads and automatically engage a ratchet mechanism as loads increase, giving sailors a holding power of up to 15:1. The ratchet engagement can be adjusted to a higher or lower load depending on the sailor's strength, sailing style and system usage.
Flip-Flop Block - 57mm
Small Boat Flip-Flop blocks pivot around the line axis to keep line close to the deck. Hinged construction allows for various lead angles.
Lightweight, machined 6061-T6 aluminum cheeks pivot on fiber-reinforced plastic chocks. The sheave runs exclusively on a ball bearing system for fast trim and release under any load. Ball bearings, sheave, and side plates are UV-stabilized with carbon black for maximum protection.
Ratchamatic® versions roll freely in both directions under low loads and automatically engage a ratchet mechanism as loads increase, giving sailors a holding power of up to 15:1. The ratchet engagement can be adjusted to a higher or lower load depending on the sailor's strength, sailing style and system usage.
Mfg No. | Sheave Diameter |
Dimensions (W x L x H) |
Max Line Diameter |
Max Working Load |
Breaking Load |
Weight |
2144 | 2-1/4" (57mm) |
2" x 4-5/16" x 2-5/8" (50 x 110 x 67mm) |
3/8" (10mm) |
500 Lbs (227kg) |
1,000 Lbs (554kg) |
5.5 oz. (156g) |
