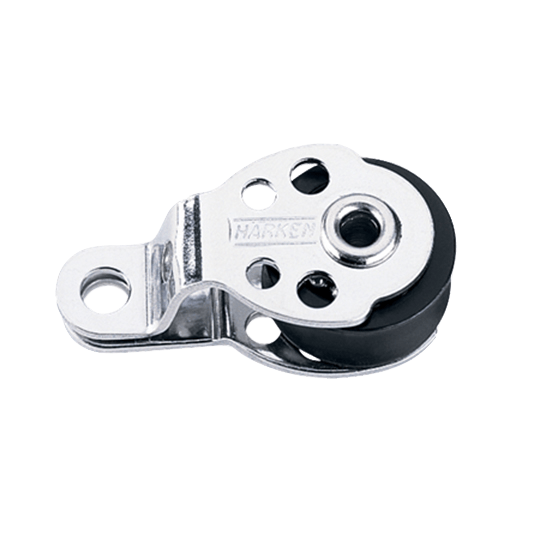

Harken 432 16mm Single Micro Dinghy Pivoting Cheek Block
HARKEN
Single 16mm Pivoting Cheek Block
The 16mm is Harken's smallest block. It's perfect for small synthetic control lines found on high-tech dinghies.

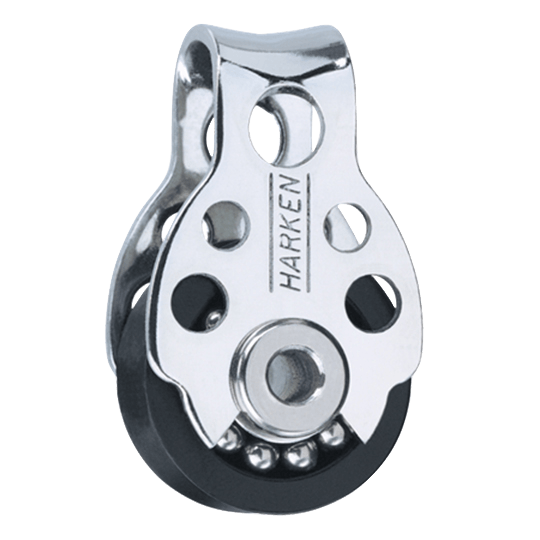

The patented bearing system uses stainless steel balls in a captive, grooved race and has a 250-lb. (113kg) safe working load, the highest on the market compared to similarly sized blocks.
Use for:
Single 16mm Pivoting Cheek Block
The 16mm is Harken's smallest block. It's perfect for small synthetic control lines found on high-tech dinghies.
The patented bearing system uses stainless steel balls in a captive, grooved race and has a 250-lb. (113kg) safe working load, the highest on the market compared to similarly sized blocks.
Use for:
- Dinghy control lines
- Big Boat leech lines
- Downhauls
- Traveler controls
- Spinnaker pole trip lines
- Outhauls
- Cunninghams
- Halyards on prams
Mfg No. | Description | Sheave Diameter |
Length | Max Line Diameter |
Max Working Load |
Breaking Load |
Fasteners | Weight |
432 |
Pivot Cheek |
5/8" (16mm) |
1-3/8" (35mm) |
7/32" (5mm) |
250 Lbs (113kg) |
750 Lbs (339kg) |
#8 (4mm) RH |
0.38 oz. (11g) |
Choose options
Harken 432 16mm Single Micro Dinghy Pivoting Cheek Block
Sale price$20.95
Regular price$24.15
