Harken 417 16mm Single Micro Dinghy Sailboat Swivel Block

Sale price$30.95 Regular price$34.85

HARKEN

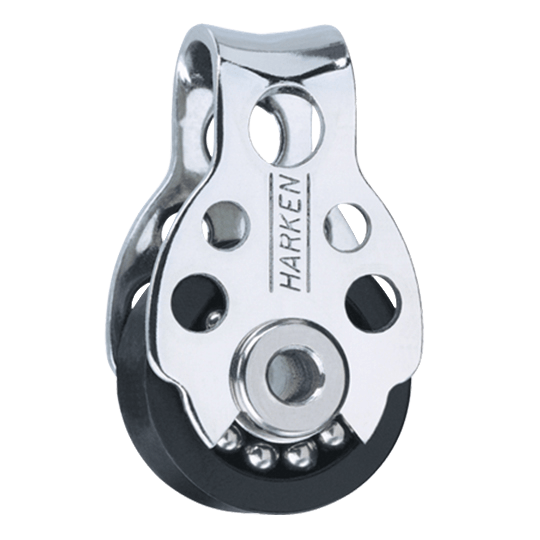

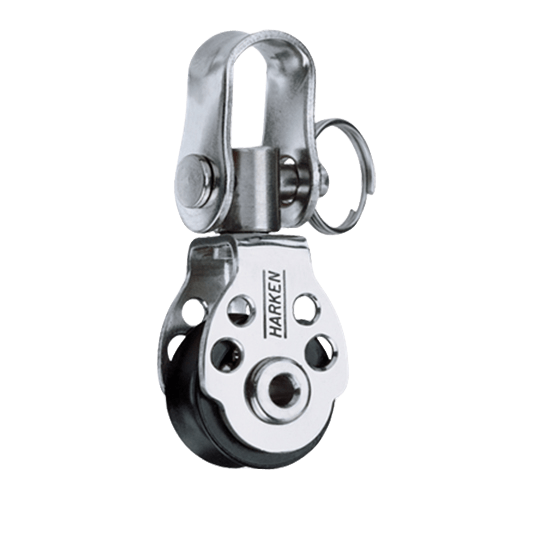

Single 16mm Swivel Block

The 16mm is Harken's smallest block. It's perfect for small synthetic control lines found on high-tech dinghies. The patented bearing system uses stainless steel balls in a captive grooved race and has a 250-lb. (113kg) safe working load, the highest on the market compared to similarly sized blocks.

Use for:
  • Dinghy control lines
  • Big Boat leech lines
  • Downhauls
  • Traveler controls
  • Spinnaker pole trip lines
  • Outhauls
  • Cunninghams
  • Halyards on prams

Specifications:
  • Sheave Diameter - 16mm (5/8")
  • Max Line Diameter - 7/32" (5mm)*


Mfg No. Description Length Max Working
Load
Breaking
Load
Weight
417 Single / swivel 1-13/16"
(46mm)
250 Lbs
(113kg)
750 Lbs
(339kg)
0.63 oz.
(18g)
